Heavy Duty Wood Chipper Machine Diesel Wood Chipper 20 Inch Diameter Machine Price List

Product Description

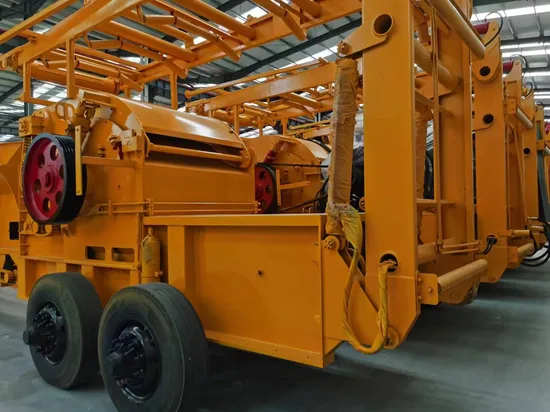

The horizontal wood chipper is mainly composed of chassis, dead knife base, dead knife, chipping rod, rotor, main shaft, hammer, upper feeding mechanism, below feeding mechanism, feeding device, discharge device, hydraulic system and electric control system.(also can make whole hydraulic drive mobile type with diesel engine model)
Sketch
Parameter:

Type	HX1260-500	HX1400-500	HX1600-600	HX1400-800	HX1600-800
Rotor diameter (mm)	800	800	800	1050	1100
Rotational speed (rpm)	650	760	760	900	860
Rotor type	blades hammer rotor	blades hammer rotor	blades hammer rotor	blades hammer rotor	blades hammer rotor
Screen size (mm)	As required	As required	As required	As required	As required
Feed power (kw)	11 + 7.5	11 + 7.5	11 + 7.5	11 + 7.5	15+7.5
Hydraulic control (kw)	3	3	4	4	4
Main motor (kw)	160	200	250	315	350
Discharge power (kw)	4 + 5.5	4 + 11	5.5 + 7.5	5.5 + 11	4+5.5
Input conveyor length	4000mm	4000mm	6000 mm	6000 mm	6000mm
Output conveyor length	10000 mm	10000 mm	10000 mm	10000 mm	10000mm
Chips size (mm)	30-50	30-50	30-50	30-50	30-50
Throughput (t per h)	10-15 TPH	15-20 TPH	20-30 TPH	20-30 TPH	30-40 TPH
Input size (mm)	1250-500	1400-500 mm	1600-600 mm	1400-800 mm	1600mm-800mm
Size (m)	7.5 x 2.8 x 2.4	7.3 x 3 x 2.6	9.9x3x3.1	9.9 x 3 x 3.3	10.5x3x3.9
Weight (t)	17.3	19.5	23.8	29.1	33.2
Shipment	1 x 40' Open top container	1 x 40' FR	1x40'FR+ 1x20GP	1 x 40' FR+ 1x 20'GP	1 x 40' FR+ 1x 20'GP

Discharged wood chip size can ajusted based on clients requirement
Control system(extra cost is required if use ABB brand soft starter),Spare parts(screen,blade,hammer)
Production workshop:
Related certificates
Shipment
Working sites: You May Have Following Questions:
Q1:Are You Trading Company or Factory?
We,Shandong Hongxin Machinery is a Factory with 21 years experience in Machinery Manufacturing,we provide you competive Factory Price
and good After-sale Service!
Q2:What About The Machine Installation?
For a single machine or a simple line,we provide you Foundation Drawing ,Installation Instruction Books or sucessful
installed machinery picture or video;for large machines and complex productioin line,we could send our engineers to guide
the installation if necessary
Q3:How About The Spare Parts?
We offer some free spare parts like blade, belt,gasket etc small parts,for the BLADES,KNIVES,SHAFTS etc important wearing
parts,we sugget customers buy some along with the machines to save the shipping cost,and we have enough spares parts
in stock.
Q4:Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your required raw material.

Clients visit and exhibition
Our Company
3D picture
