Nadun Vtc75 CNC Vertical Turret Lathe for Sale Definition Features and Industry Standards
| US$56,000.00-60,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VTC75
Type
Vertical Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Table
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max. Length of Workpiece (mm)
700
Machining Capacity
Medium Duty
Spindle Bore(mm)
160
Spindle Motor Power(Kw)
22
No. of Spindles
Single
Number of Axes
2
Travel (X Axis)(mm)
700 mm
Travel (Z Axis)(mm)
700 mm
Tool Post Stations
8
Weight (Kg)
9500
Max. Spindle Speed (r.p.m)
1000 r.p.m
Width of Bed (mm)
45 mm
Max. Turned Length (mm)
700
Positioning Accuracy (mm)
±0.008
Repeatability (X/Y/Z) (mm)
±0.005
Transport Package
Transparent Plastic Wrap, Plywood Wooden Case
Specification
2700*2100*3200mm
Trademark
Nadun
Origin
Shandong Province, China
HS Code
8462919000
Production Capacity
30 Sets/Month
Packaging & Delivery
Package Size
270.00cm * 210.00cm * 320.00cm
Package Gross Weight
9500.000kg
Product Description
Nadun VTC75 CNC Vertical Turret Lathe for Sale Definition Features and Industry Standards Product DescriptionThis CNC Vertical Lathe features:
1. The base, column, and slide are made of high-grade gray cast iron for strength and long-term accuracy stability.
2. Utilizes a roller-type linear guide for ultra-high rigidity and heavy load capacity, improving positioning accuracy and load-bearing capacity.
3. The servo main motor connects to the spindle through a synchronous toothed belt, ensuring repetitive positioning accuracy with stepless speed control for various machining requirements.
4. Longitudinal and transverse feeds are controlled by high-power servo motors, with a load balancing mechanism in the longitudinal feed to extend the screw's life cycle.
5. Support at both ends of the ball screws uses imported double-row bearings, ensuring machining accuracy.
6. Features an adjustable electric lubrication pump for intermittent automatic lubrication, ensuring precision in all moving parts.
7. The tool holder adopts a multi-station CNC tool holder for one-time clamping, reducing tool change time and improving work efficiency.
8. The spindle offers customization options such as a rotary table or hydraulic chuck at the upper end, and a rotary oil cylinder (single-piston or double-piston) at the lower end for versatile workholding capabilities.

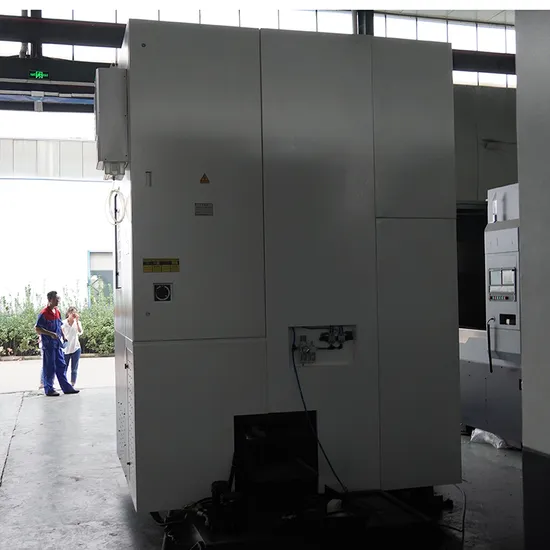

Detailed Photos
Product Parameters
| Project | Specification | Unit | VT45 | VT65 | VT75 |
| Machining Capacity | Max. Turning Diameter | mm | ∮560 | ∮650 | ∮750 |
| Max. Cutting Diameter | mm | ∮450 | ∮600 | ∮700 | |
| Spindle | Spindle Face Type | | Straight | Straight | Straight |
| Spindle Speed | rpm | 100-2000 | 100-1000 | 100-1000 | |
| Chuck Diameter | mm | 500 | 500 | 610 | |
| Tool Magazine | Tool Capacity | pc | Horizontal 8 | Horizontal 8 | Horizontal 8 |
| Travel | X-Axis Travel | mm | 400 | 420 | 700 |
| Z-Axis Travel | mm | 500 | 500 | 700 | |
| Hydraulic Unit | Oil Tank Capacity | L | 40 | 40 | 40 |
| Hydraulic Motor Power | kW | 2 | 2 | 2 | |
| Motor | Spindle Servo Motor Power | kW | 15 | 19 | 22 |
| Accuracy | Repeated Positioning | mm | ±0.008 | ±0.005 | ±0.005 |
| Positioning Accuracy | mm | ±0.008 | ±0.008 | ±0.008 | |
| Machine Dimensions | Length * Width * Height | mm | 2200*2300*2600 | 2150*2210*2970 | 2700*2100*3200 |
| Weight (with Accessories) | kg | 5000 | 7000 | 9500 | |
| Power Requirements | Power Supply | 3¢-AC 380V 50HZ±5% | |||
| Leakage protection, power failure protection | √ | ||||
| Three-color indicator for machine status | √ | ||||
| Long-term stable operation under the following conditions | Ambient temperature 5~38° | ||||
| Ambient humidity<85% | |||||
| Machine noise meets national standards | √ | ||||
