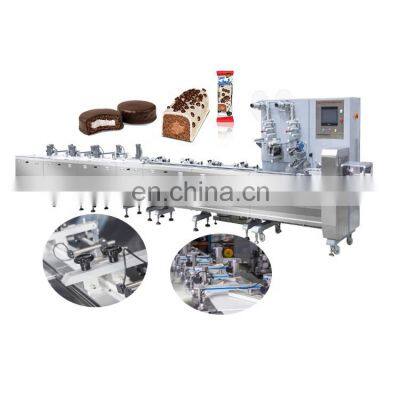

Candy/Chocolate/Protein/Cereal Bar Packaging Machine

Product Description

Product Description
Product Description
Product ApplicationAutomatic feeding high speed packing machine
It is applied for the pillow packing of products with easy broken surface,such as chocolate,wafer,puffing food,rice cake,cake,Swiss roll,caramel treats,nougat,candy floss and other types of candies or enrobing products.

MAIN TECHINICAL PARAMETER
Packing Speed	50-1000pcs/min
Product Dimensions	According to real product size
Total Power	9.5kw
Outside Dimensions	8900mm*1180mm*1786mm(L*W*H)
Net Weight	3300kg
Power Source	400V;50HZ,3phase(can customized)

Main FeaturesAutomatic feeding high speed packing machine
1. NINE Servo motors,  touch screen control.
2. Automatic feeding for the complete packing line.
3. Automatic belt speed adjustment through frequency converter, every conveyor belt is individual.
4. Conveyor belt automatic deviation device through cylinder and photocell.
5. Automatic temperature cooling through the air condition with two fans, air cooling or water cooling available.
6 .Double paper rollers, automatic paper splicer device (paper splicer device designed according to Germany Bosch)
Detailed Images
All the feeding belt are individual speed control by individual frequency converters, it can adjust the speed in the touch screen conveniently. easy take off and installation.
The belt rollers use the rubber materials in case the belt slip.
photoelectric tracking system.
Automatic feeding high speed packing machine
Belt Discharging Conveniently
The both sides install the teflon. It can reduce the friction with the products.
The machine equips with the fan to position the product in the hole belt precisely.
Water cooling for the belt
Double Paper rollers structure and fast automatic paper splicer designed according to Germany Bosch as below.
Double Layers Electrical Cabinets (Mechanical and Electrical parts are separated).
Our Service
1.One year guarantee for the quality, if components are damaged naturally, we will replace it freely. If Manually damaged, the clients
Response for the costs.
vide the complete installation, debugging, technology support and staff training.
3.permanent accessory parts supply only to our clients for competitive price, quick response for the after-sales service.
Packing & Delivery
Payment Terms:40% T/T in Advanced, the balance should be paid before delivery.
Delivery time: 30 days after the deposit.
Package: Seaworthy Wooden Case.
Shipping:By Sea.
FAQ
Q1: How to find a packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product would you like to pack?
2. The bag size of you need for the product packing ( the length, width).
3. The weight of each pack you need.
4. Your requirement for the machines and the candy shape.
Q2: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q3. How can we make sure about the machine quality after packing the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.
Q4. Can you explain me the whole transaction process ?
1.Sign the contact.
2.Arrange 40% deposit to our factory.
3.Factory arrange production.
4.Testing & detecting the machine before shipping.
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.
