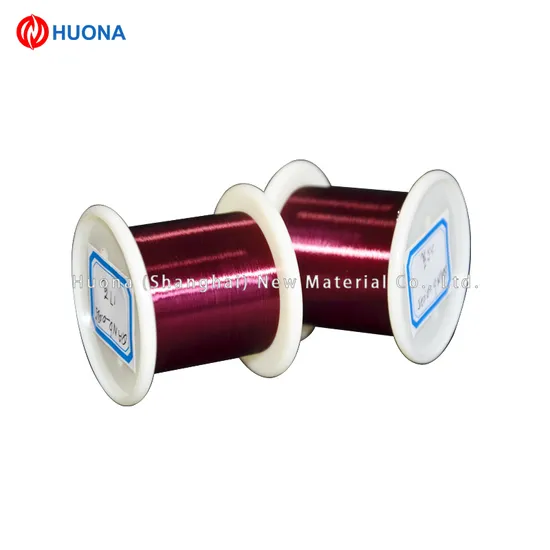

Enamelled Resistane Heating Wire CuNi2/CuNi6/CuNi23/CuNi30 for Winding Transformer

Product Description

Enamelled Resistane Heating Wire CuNi2/CuNi6/CuNi23/CuNi30 for Winding Transformer As a big manufacturer and exporter in China on the line of electric resistance alloy, we can supply all kinds of electric resistance alloy wire and strips (resistance steel wire and strips),
Material: CuNi1, CuNi2, CuNi6, CuNi8, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi44
General Description
Due to has high tensile strength and increased resistivity values, copper nickel alloy wires are the first choice for applications as resistance wires. With the different nickel amount in this product range, the characteristics of the wire can be chosen according to your requirements. Copper nickel alloy wires are available as bare wire, or enamelled wire with any insulation and self-bonding enamel. Furthermore, litz wire made of enamelled copper nickel alloy wire are available.
Features
1. Higher resistance than copper
2. High tensile strength
3. Good bending proof performance
Application
1. Heating applications
2. Resistance wire
3. Applications with high mechanical requirements
4. Others
Appicaton:
Low-voltage circuit breaker, thermal overload relay, electrical heating cable, electrical heating mats, snow melting cable and mats, ceiling radiant heating mats, Floor heating mats & Cables, Freeze protection cables, electrical heat tracers, PTFE heating cables, hose heaters, and other low-voltage electrical product
Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
2	-	-	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	200ºC
Resisivity at 20ºC	0.05±5%ohm mm2/m
Density	8.9 g/cm3
Thermal Conductivity	<120
Melting Point	1090ºC
Tensile Strength,N/mm2 Annealed,Soft	200~310 Mpa
Tensile Strength,N/mm2 Cold Rolled	280~620 Mpa
Elongation(anneal)	25%(min)
Elongation(cold rolled)	2%(min)
EMF vs Cu, μV/ºC (0~100ºC)	-12
Micrographic Structure	austenite
Magnetic Property	Non

Application of CuNi2
CuNi2 low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.
