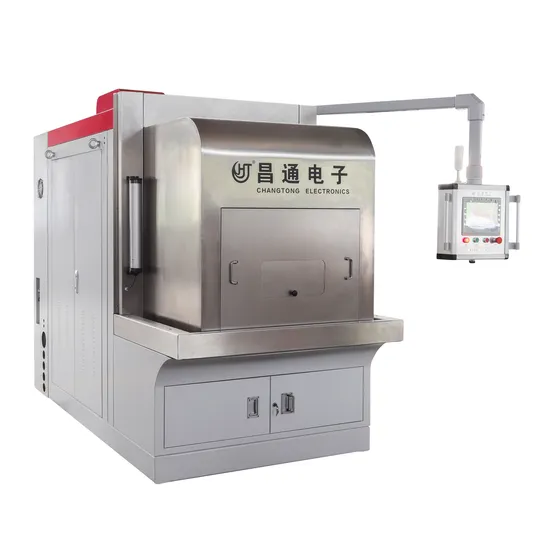

Changtong Semi-Conductor Bar Cutting Machine for Optimal Solar Production

Product Description

Equipment Use: This sophisticated model is precisely engineered to elevate your cutting efficiency. With an impressive roller length of 690mm, and a versatile table size of 170/145mm*690mm*160mm*2 versions, it perfectly accommodates products with a thickness ranging from 0.3mm to 65mm.
CHTXQ-690F Double Plate Multi-Wire Cutting Machine - Product Features
1. Highlighting advanced engineering, the four independent motors drive each roller, turning them into efficient drive shafts. This design remarkably reduces wear on the steel line and the rollers, thus enhancing their longevity. The roller bracket's precise molding from a processing center ensures meticulous spindle installation with absolute coaxial alignment.
2. Equipped with an intuitive LED display, the equipment provides clear and immediate insights into cutting data, enhancing user precision and confidence.
3. Ingeniously designed for convenience, materials are cut from the bottom up, simplifying the loading and unloading process significantly.
4. The machine offers both high-speed and standard models. Experience the thrill of superior speeds with the high-speed variant, boasting an enhanced line speed and cutting efficiency, while enabling the use of a finer diamond line for cutting identical materials.
5. Offering flexibility with its transverse movement feature, the table can effortlessly move back and forth. This allows for precise tile cutting and achieves a singe-line cutting functionality with ease.
6. The expansive loading area, measuring 170/145mm*690mm*160mm*2 versions, dramatically boosts cutting efficiency, accommodating larger workloads.
7. The spindle exhibits exceptional precision with an accuracy of ≤0.01mm. Featuring a dust-resistant structure (patent No. ZL201320681902.7), it ensures stable operations and straightforward disassembly.
8. User-friendly and efficient, the machine's automatic lifting shield and fully expanded workbench make loading, unloading, and material rolling smooth and hassle-free.

	unit	parameter
Maximum Worksize	mm	170/145*690*160*2
cutting thickness	mm	0.6~65
running speed	m/min	0~2200
Table lift stroke	mm	220
Table cutting feed speed	mm/hour	0.1~100
The amount of wire output from the supply wheel	Km	30(φ0.2diamond wire)
Diamond diameter	mm	φ0.06~φ0.35axle
Roller outside diameter*number of axles	mm	φ155/φ180*690*4
boundary dimension	mm	≈1830*2800*2650
machine weight	Kg	6500~115000
power		AC380V/50HZ three-phase four-wire
Total machine power rating	Kw	54 above

This innovative double-station multi-wire cutting machine excels with diamond wire processing, adeptly handling two plate materials at once. With a robust roller length of 690mm, it offers a substantial maximum cutting area of 220mm*690mm*160mm*2 versions. The rotary tool holder function allows for a cutting blade thickness range from 0.5mm to 65mm, facilitating both single-line and multi-line cutting. Ideal for processing hard and brittle materials into straight sheets with precision.
Designed as a multi-line cutting machine for diamond line-processed products, this model features a roller length of 570mm and a maximum cutting area of 220mm*570mm*160mm. Its sophisticated rotary tool holder effortlessly handles cutting from 0.3mm to 65mm product thicknesses, specializing in batch processing of hard and brittle materials into straight sheets.
Tailored for small-scale production, this compact multi-line cutting machine comes in single and double station models. Perfect for small batch processing of hard and brittle materials into straight sheets, it offers simple, convenient specification changes. Capable of handling cutting sheet thicknesses from 0.5mm to 30mm, it supports both single-line and multi-line cutting functionalities.
>Stable Wire Web Control
Engineered for precision, the rollers and wire spools utilize a cone-positioned structure, delivering high accuracy and rigidity to minimize wire web shaking, ensuring supreme stability.
>Optimized Pulley System
The innovative design of 8 pulleys significantly reduces diamond wire torsion, tension fluctuations, and the rate of wire breakage, ensuring smoother operations.
>Easy Wire Winding
The wire pay-off wheel features a standard universal spool (PV600 reinforced I-wheel), eliminating the hassle of rewinding and promoting seamless wire handling.
>Safety Guarantee
For maximum safety, the main operation door is equipped with an electric elevation system and a built-in safety device, providing peace of mind during operation.
>Wire break memory system.
>Easy Operation
Designed for user convenience, the cutting room offers open access on three sides, simplifying operation and maintenance tasks.
