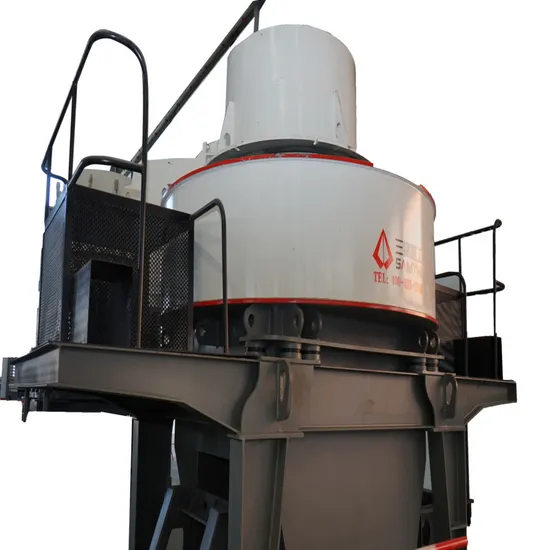

High Quality Vertical Shaft Impact Crusher with Good and Uniform Discharge Paticle Shape for Crushing Various Stones

Product Description

High Quality Vertical Shaft Impact Crusher With Good And Uniform Discharge Paticle Shape For Crushing Various Stones Product Information
This series of vertical shaft impact crusher is a high-performance sand making equipment with an advanced level that is developed and produced based on the new generation of achievements abroad and combined with domestic realities. Its performance plays an irreplaceable role among various fine crushing equipment for ores. This product has two types: shaping and sand making. When this product is used for sand making, the principle of direct hitting is adopted, which can effectively improve the sand forming rate of the product. The interchange between shaping and sand making can be achieved by simply replacing two parts. It is suitable for artificial sand making of river pebbles, mountain stones (limestone, granite, basalt, diabase, etc.), ore tailings and stone chips.
Technical Details

Model	MotorPower (KW)	Full Feed	Central Feed	Soft Material of Feed size(mm)	Hard Material of Feed size(mm)	Discharging Granularity
PLZ-1032V	160X2	180-260	150-200	40	45	0-5(mm)(10%-30%)
PLS-1032V	160X2	180-260	150-200	40	45	0-5(mm)(30%-50%)
PLX-1032V	160X2	180-260	150-200	40	45	0-5(mm)(30%-60%)
PLZ-1140V	200x2	300-360	230-260	45	50	0-5(mm)(10%-30%)
PLS-1140V	200x2	300-360	230-260	45	50	0-5(mm)(30%-50%)
PLX-1140V	200x2	300-360	230-260	45	50	0-5(mm)(30%-60%)
PLZ-1150V	250x2	340-400	280-320	45	50	0-5(mm)(10%-30%)

Advantages
1. Deep cavity impeller design
The crushing cavity shape is upgraded, the throughput is increased by about 30%, the acicular and flaky content is reduced by 20%, and the discharge particle shape is excellent.
2. Sawtooth-shaped counterattack block design
The adoption of sawtooth-shaped counterattack blocks improves the sand-making efficiency by 10%.
3. Special shafting combination design
The innovative shafting combination method increases the service life by 20%.
4. Convenient and adjustable feeding method
The feeding structure is optimized, and the feeding methods of central feeding and waterfall feeding can be conveniently adjusted.
5. Installation of protective plate device
High manganese protective plates are used for the protection of the impeller, cutter head and panel to ensure stable operation. Protective plates are installed at the feed inlet to prevent the wear of the feed inlet body.
6. Interchangeable functions of sand-making and shaping
The simple interchange of the retaining box and the circumferential counterattack block can realize the interchange of the functions of sand-making and shaping.

Process
Applicable Materials
Applicable to the production of all machine-made sand in the sand and gravel aggregate industry, including common limestone, river pebble, basalt, granite, iron ore, construction waste, etc.Different models match different materials.
Packing
Company Profile
Chongqing Sanming Heavy Industry Co., Ltd. was established in 1994 as a comprehensive equipment manufacturing company that integrates scientific research, production, sales and service. Adhering to the business philosophy of "honesty, pragmatism and innovation", and focusing on the product orientation of "intelligence, high efficiency, energy conservation and environmental protection," with 30 years of innovative development, Sanming's products now include stone crusher and screening equipment, casting spare parts, intelligent control systems, and EPC general contracting projects, covering numerous industries such as mining, building materials, highways, railways, bridges, coal, metallurgy and chemical industry. It has become a national high-tech company.
Certification
Main Product
Workshop
Finished product workshop
Production workshop
Foundry workshop
Test platform
Create a complete equipment test site for customers to more intuitively display product effects.Including jaw crusher, cone crusher, impact crusher and other machines
Project Case
After Sales Service
We win market respect with quality and win customer trust with professional services.
We carefully inspect and accept each production line, so that customers can put it into production with confidence.
We carry out quality tours all year round, and always adhere to the win-win development concept of "same heart, same virtue, same trade, same sharing".

Exhibition
FAQ
1.Can I have a sample order?
A: Yes.
2.What about the leading time ?
A: 15 working days.

3.Do you have any MOQ limit ?
A: MOQ is 1 set.

4.Can you provide OEM and ODM services?
A: Yes.

5.Will you provide pre-sale services ?
A: Yes. SAMYHI consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
6.Is our after-sales service excellent ?
A: Yes. SAMYHI's skilled technicians are available to assist with onsite installation,commissioning & training on request.
7.Will we provide technical support ?
A: SAMYHI provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
