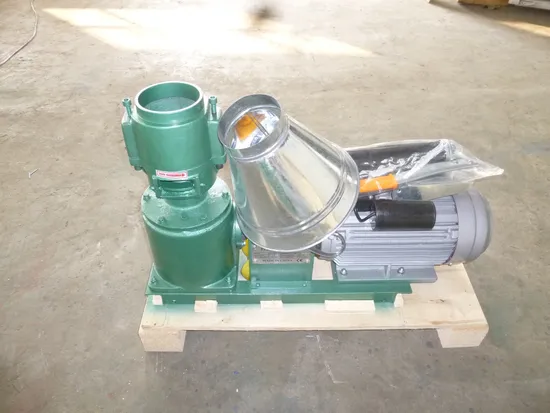

Single Phase Pellet Machine 220V

Product Description

Product Application 1. Single phase pellet machine can make both wood pellet and animal feed, designed for different usage.
2. Single phase pellet machine is for pressing all kinds of bio-mass material to be solid pellets which is for burning fuel or animal feeding. Its ideal pellet machine for personal, family and small plants due to easy operation and maintenance.
3. Pine wood sawdust is the best materials to make pellets. Because it is rich in oil, and the sawdust can be pressed very high quality wood pellets.
Single phase pellet machine specification:

Model	Power	Capacity	N/G weight	Packing size
TOPS120B-2.2	2.2/3kw 2ph	30-60kg/h	80/90kg	75*32*61cm
TOPS120C-2.2	2.2/3kw 2ph	30-60kg/h	90/100kg	80*35*74cm
TOPS120B-3	3kw 3phase	40-100kg/h	80/90kg	75*32*61cm
TOPS120C-3	3kw 3phase	40-100kg/h	90/100kg	80*35*74cm
TOPS150B	4kw 3phase	100-200kg/h	100/120kg	75*35*65cm
TOPS150C	4kw 3phase	100-200kg/h	100/120kg	75*35*65cm
TOPS200B	7.5kw 3phase	200-300kg/h	200/230kg	100*43*95cm
TOPS200C	7.5kw 3phase	200-300kg/h	200/230kg	100*43*95cm
TOPS230B	11kw 3phase	300-400kg/h	290/320kg	114*47*97cm
TOPS230C	11kw 3phase	300-400kg/h	290/320kg	114*47*97cm
TOPS260B	15kw 3phase	400-600kg/h	330/360kg	120*52*105cm
TOPS260C	15kw 3phase	400-600kg/h	330/360kg	120*52*105cm
TOPS300B	22kw 3phase	600-800kg/h	410/450kg	127*52*107cm
TOPS300C	22kw 3phase	600-800kg/h	410/450kg	127*52*107cm
TOPS360C	22kw 3phase	700-900kg/h	470/500kg	134*58*110cm
TOPS400C	30kw 3phase	900-1200kg/h	630/660kg	145*62*115cm

Main Features 1.This machine is flat die pellet press driven by 2.2kw, 220v, single phase electrical motor.
2. It can not only press feed pellets, but also press wood sawdust pellets.
3. Moisture content of the raw materials required: 12%-20%.
4. Feed Capacity: 40-60kg/h, Saw Dust Capacity: 10-30kg/h.
