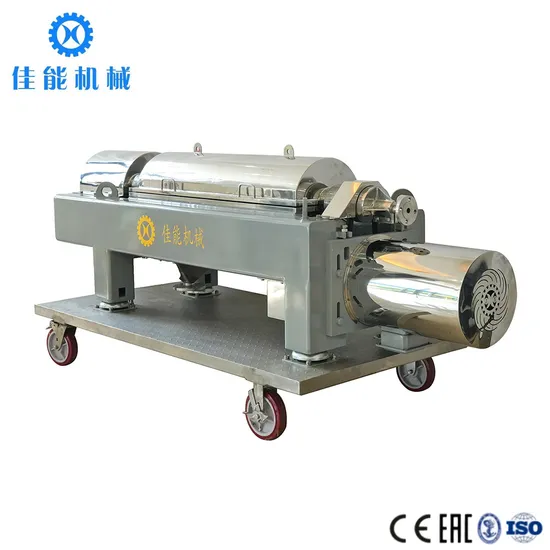

High Efficiency Decanter Centrifuge for Organic Solvent Processing System

Product Description

Company Profile Jiangsu Jianeng Machinery Manufacturing Co., Ltd. proudly stands as a beacon of innovation and excellence in the high-tech manufacturing sector, under the esteemed ownership of Nanjing Jianeng Machinery Manufacturing Co., LTD. Since our prestigious inception in 2001, we have continually set benchmarks in research, design, manufacturing, and service excellence. Originally founded in the vibrant Nanjing Yuhuatai District, we've since expanded into our cutting-edge, strategically positioned new facility located at Jinyuan Road No. 7 in the thriving Xuyi Economic Development Zone of Huaian City, Jiangsu. Spanning an impressive 58,700 square meters, our expansive site features a 38,600-square-meter workshop, a 4,000-square-meter office building, and a 2,100-square-meter science and technology building. Driven by an unwavering commitment to excellence, we are devoted to crafting China's most outstanding disc and decanter centrifuges, achieving a remarkable annual production capacity of 2,000 sets.

Main technical parameters ofdecantercentrifuge
Model	LW250 Series	LW350 Series	LW450 Series	LW530 Series	LW580 Series	LW650 Series
U. mm Drumdiameter	250	350	450	530	580	650
m³/h Water lux	3	10	20	30	40	50
U. w Main motor power+ Auxiliary motor power	15+4	22+7.5	30+11	45+15	55+15	75+22
U. kg Weight	1100	2300	4500	5500	6500	9500
U. m Overall dimension	2.7X0.7X0.85	3.54x0.92x1.05	4.35x1.12x1.35	4.6x1.25x1.52	5.12x1.3x1.48	5.58x1.35x1.65

Typical Structure of Decanter Centrifuge Drum
The decanter centrifuge, often referred to simply as the 'decanter,' is ingeniously engineered with essential components such as the drum, screw, differential, frame, and cover. During operation, both the drum and screw rotate in harmony, maintaining a specific differential speed for optimal efficiency.Material is seamlessly introduced into the inner spiral cylinder via the feed pipe, where it is rapidly accelerated into the rotating drum. Within this dynamic environment, centrifugal force compels the denser solid particles to settle along the drum's wall, creating a distinct sediment layer. The screw diligently transports this sludge towards the drum cone's endpoint, where it is proficiently expelled from the machine through the designated discharge outlet.Simultaneously, the lighter liquid phase gracefully forms an inner liquid ring, which effortlessly cascades through the overflow port located at the drum's larger end, elegantly draining from the machine via the drain port. This process achieves a flawless liquid-solid two-phase or liquid-liquid-solid three-phase separation.
Procedure Control
At Jiangsu Jianeng Machinery, we take immense pride in our cutting-edge quality inspection and test center, furnished with a suite of the most advanced instruments available. With state-of-the-art tools like chemical analyzers, sophisticated product test benches, high-precision dynamic balances, coordinate measurement machines, Vickers hardness testers, imagers, flaw detectors, profilers, and coding machines, we meticulously ensure that every product we manufacture meets the pinnacle of quality standards. Through rigorous and all-encompassing testing procedures, coupled with our sophisticated equipment, we guarantee that our products consistently deliver superior quality and unmatched reliability throughout every phase of the manufacturing process.
Product Equipment
Jiangsu Jianeng Machinery is equipped with a comprehensive suite of advanced production capabilities that cover a full spectrum of needs, including machining, surface treatment, cold welding, testing, test stands, installation, and commissioning. Our state-of-the-art facility is home to over 300 pieces of cutting-edge equipment, featuring CNC boring and milling centers, CNC turning centers, gantry machining centers, advanced testing tools, parts painting production lines, shot peening production lines, welding equipment, surface treatment machines, and high-precision dynamic balancing equipment. This expansive array of machinery empowers us to achieve complete process independence, securing unmatched product quality at every turn. With world-class processing and testing equipment, a team of highly skilled technical experts, scientifically refined manufacturing techniques, and a steadfast commitment to national military standards and rigorous quality management systems, we uphold our core tenets of 'management, quality, and efficiency' in all aspects of our operations.
One-stop Services
We are proud to offer a comprehensive suite of one-stop services designed to meet the diverse needs of our valued clients. Our offerings include a generous inventory of spare parts supply, expert commissioning, repair, maintenance services, and professional technical consultations, all crafted to ensure the utmost support and satisfaction for our customers. Sufficient Spare Parts and Standby Machines
Our formidable independent production capabilities, spanning the entire manufacturing process, empower us to consistently deliver exceptional products that not only meet but exceed industry standards, ensuring optimum performance and reliability.
