Zszb-D100 Full Automatic Fast Paper Cup Machine

Product Description

Product Description

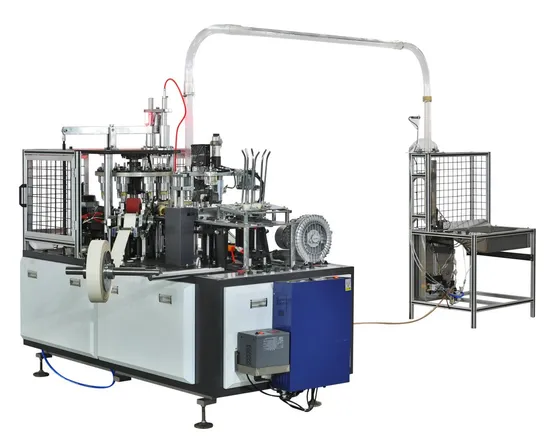

ZSZB-D100 paper cup machine is improved based on the normal chain driving type. This machine runs a whole procedure
of paper-feeding,cup-fan-wall sealing, oiling, and bottom punching, heating, rolling, rimming, rounding and tripping.
It is idea equipment forproducing drinking cups, market cups, coffee cups, advertising cups, etc. It is widely used
for hot drink and beverage.If you need double PE coated paper cups or paper gram higher 250g/m2, we
recommend you to use Ultrasonic paper cup machine. It canproduce single PE coated paper cups and double
PE coated paper cups.
Specification:

Technical Specification:
Model	ZSZB-D100
Cup size:	2.5-9oz(if the cup is more than 9oz the machine designed more lager )
Raw Material	150-300g(One-side or Two-side PE (polyethylene) film coated / laminated paper)
Suitable paper weight	150-380g/m2(single PE-coated paper)
Productivity	70-100pcs/min
Power Source	380V 50HZ(customization)
Total Power	4KW
Total Weight	2000KG
Package Size(L x W x H)	2300x1500x1700mm(LxWxH)
Working Air Source	Air pressure 0.4Mpa;Air out-put:0.6m3/min
Making Double PE coated paper cups, need to buy an air compressor

FAQ
1.Q:Where is your factory? How can I get there?
A: We are located in Ruian City Wenzhou, Zhejiang Province.
To Wenzhou Longwan airport by Air, from Shanghai is about 45mins, from Guangzhou is about 1hr 50mins and from Hongkong is about
2hrs. We will pick up you in the airport.
2.Q:Can your machine be customized?
A: Your better improvement suggestions are highly appreciated. Almost all of our products can be customized, including the sizes,
color, logo, package and so on. 3.Q :What's the OLD(order lead time)?
A: For our standard model machines is about 30days after receiving your deposit. 4. Q: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by
FCL(full container loading) we might use the wooden pallet with plastic film wrapping, without plywood case.
