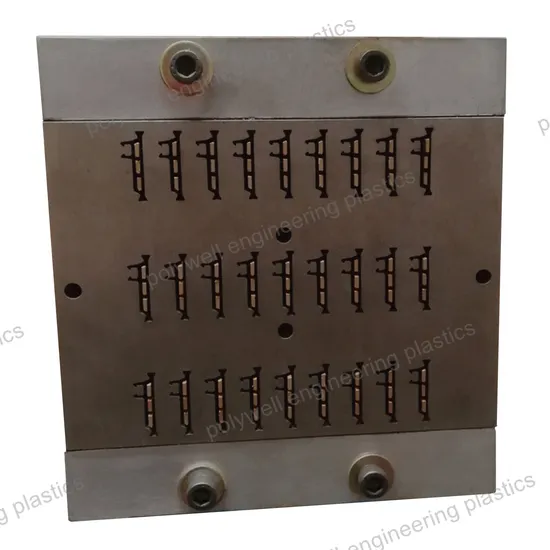

Polyamide Strip Nylon Pipe Making Tool PA66 GF25 Profile Extrusion Mould for Thermal Break Strips Production Line

Product Description

Polyamide Strip Nylon Pipe Making Tool PA66 GF25 Profile Extrusion Mould for Thermal Break Strips Production Line
Polywell mould can meet the needs of the market and customer.
Polywell has its own design and development of nylon insulation strip automatic extrusion production line with high stability, high yield, high adaptability.
Extrusion molding (also known as plastification extruding) is a process that the stack of molten substance in mold is pushed out to assume another form of other final product under pressure.
Mold decides the shape and detail sizes of the final product.
The utility model mainly uses the special screw to make the polyamide and the glass fiber mixed good.
Heat insulating rubber strips are widely applied to the doors, windows and curtain wall aluminum sheets through the different sections of the die.

Product Specifications:

Product Name	Mould for thermal barrier strips extrusion machine
Brand	Polywell
Size	Various types
Mold material	Mold steel
Product	PA66 thermal barrier strips
Runner	Cold/Hot runner
Mould cavity	Multi-cavity
Mould weight	60kg-100kg
Service	Provide complete set of production press and technology and best after sale service.
Lead time	28-35 working days
Package	Plywood case

Detail introduction:
PA66 granules and fiber glass are dired and get into the barrel through the hopper. Screw and pellets contact with the rotation of the screw is forced to promote the spiral groove die direction.
Because the screw barrel gap is small, the granule material is hot body under great pressure in the forward process, it is plasticizied to nylon thermosol through the high temperature of the electric heating ring body. Nylon plastic and plastic compression heating hot melt by extrusion molding, after traction, cutting or rolling become adiabatic adhesive tape products.
The host adopts imported inverter and traction, speed stability, ensure the main, auxiliary synchronous speed.
We use German technology to make the mould, so the surface of thermal insulation strips are beautiful, accurate shape and with high strength.
We use imported Japanese RKC temperature control table, so that the accuracy of the temperature can be controled in ±2 degrees.
Our Advantages:
1. Our engineers follow the molds' production every week to make sure all of them are in schedule.
2. After trial production, we will check the samples to make sure everything are right.
3. We will send the sample and dimension report to our clients for approval.
4. After everything is ok, we will do final inspection on the molds and products before shipment.
Our Company: Package & Delivery
We usually put each mold into a plywood case to make sure the mold is safe during the whole transport process.
The weight of each mold is around 60-200kg. It depends on the mold sizes.
We usually need 28-35 working days to produce a mold. After that, we will do the mold test to make sure both the mold and the polyamide strips produced by this mold are qualified.
Please feel free to contact us if you have any questions.
