4lz-5.0 Combine Harvester for Rice and Wheat

Product Description

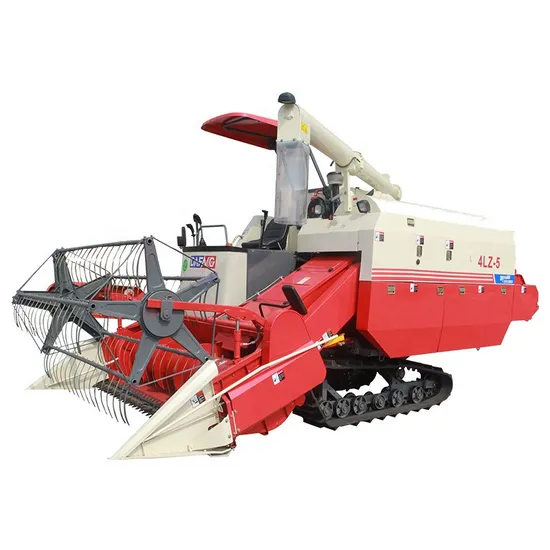

4LZ-5 Combine Harvester For Rice and Wheat
2.2 meters cutting width, Big Hydraulic JDF80 gear box with 38cc HST, high efficiency. 102HP Brand Turbo-charged Diesel Engine with stronger power and low fuel consumption. 500*90*51mm extra wided and extended rubber track. Lower ground pressure, work in the wet field more stably 340mm Higher ground clearance and increase the height between chassis and the top of track, not easy to accumulate mud. better for passing in paddy field. The longitudinal axial flow threshing cylinders is more efficient and adjustable front & rear large-area sieving plates ensure the grain more clean, less breakage and less loss. Widen conveyer groove with innovated cutter bar lifting system can provide a more efficient feeding and a higher lifting level, convenient for working in paddy field and maintenance, and lower noise and vibration. Extremely strong Chassis; Excellent waterproof suspension wheel system; Easier turning & control with friction disc brake and special heavy-duty gearbox for hydraulic steering combine harvester. Down-forward straw-discharging outlet for straws with shredding mechanism to get straw pieces back to fields. Convenient for gathering by baler machine. New design of tension frame, Reinforce imported belt structure, avoiding belt being broken and track slip. And New design of all shields for easy open and maintenance. Sided small grain tank of 0.3CBM and Big grain tank of 1.4CBM with 270° discharger auger & Air conditioned cab and sunshade at Option.

Model		4LZ-5
Type		Rice & Wheat combine harvester
Cutting table width		2200 mm
Feeding volume		5 kg/s
Working efficiency		0.27~0.85 hec/h
Dimension(L*W*H)		5450×2520×2870 mm
Weight		3400 kg
Min. ground clearance		330 mm
Track grounding pressure		≤24 K pa
Operating speed		0.9~6.5 km/h
Fuel Consumption		≤35 kg/hec
Engine	Manufacturer	Famous manufacturer (Changchai)
	Model	4G33TC
	Type	Vertical,Four-stroke,Water-cooled, Direct injection
	Number of cylinder	4
	Rated power	102 HP
	Standard rotary speed	2600 r/min
Cutter type		Euro II
Cutting table cross auger type		Spiral propeller
Reel	Type	Eccentric spring tooth
	Diameter	Φ900 mm
	Reel bar	5
Threshing mechanism arrangement		Longitudinal axial flow
Threshing Drum	Number	1
	Type	Longitudinal axial rod type
	Size (OD*Length)	Φ620*200 mm
Concave screen type		Grid format
Fan	Type	Centrifugal type
	Diameter	Φ400 mm
	Quantity	1
Rubber Track	Pitch×Section Number×Width	90mm×51×400mm (450/500/550mm is optional)
	Gauge	1150 mm
Working Gears		I.II
Cab type		Closed Type
Gearbox type		Mechanical+HST
Service brake		Wet friction plate type
Drive axle type		Hydro-static Drive
Stem shredder type		Rotary blade type
Unloading grain type	Small Grain Tank	Manual & sacked
	Big Grain Tank	Mufti-directional unloading grain
The volume of Grain Tank		1.4 M3
Re-thresher type		Blade type
