Automatic AAC Block Machine with ISO9001 Certificate

Product Description

1.Detailed information:
(1)Professional manufacturer of AAC block making machine for 15 years;
(2)Our products have passed ISO9001:2008,BV,CE,SGS certification;
(3)Engineers available to service machinery overseas;
(4)Warranty:one year,24 hours technical support by e-mail;
2.Autoclaved Aerated Concrete(AAC) Block Introduction:
Autoclaved Aerated Concrete (AAC) Block, also called Light Block, used siliceous (fly ash, sand, slag) and calcareous (lime & cement) as the main raw materials, which through the process of batching, pouring, cutting, autoclaving, separating and packing to make into the final products.It is new type & environmental construction material and widely used for industry and civil building construction.AAC Block is the most mature technology of production and application in the worldwide nowadays.
3.Autoclaved Aerated Concrete(AAC) Block Advantages & Features:
(1) Lightweight:300~700kg/m3
(2)High Intensity:3.5~10.0Mpa
(3)Good Thermal Insulation Property:0.1~0.20W/(m · k)
(4)Keeping Temperature, Heat preservation, Fireproof
(5)Good Sound Insulation:47.25db;
(6)Earthquake Proof
(7)Good operating
(8)Conveniently Mechanized Construction

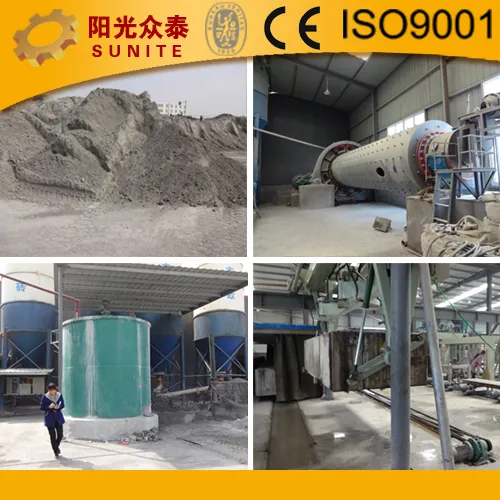

4.Main Process Flow of AAC Machine:
(1)Raw material:Store the flyash (tailings etc), lime and gypsum after milling to the needed fineness (200 mesh);
(2)Mixing the fly-ash, cement, lime, gypsum and water in the pot after batching.
(3)Promote the slurry temperature to 40to50 degree by steam, and mill with aluminum powder for 1min.
(4)Pour the slurry into the mould, and still in the curing room for frothing in 2-2.5h.
(5)Cut it in to needed size by the cutter after the slurry approach the cutting
Intensity, and place the block on the trolley.
(6)Autoclaved curing after the trolley enter into the autoclave (vacuum, rise the pressure,
Keep the pressure, reduce the pressure),keeping the constant pressure 1.2MPa.
The whole process needs about 8 hours.
5.What are the applications of the finished AAC blocks?
Finished AAC block is Suitable for all nonbearing wall and bearing wall of multi-story (less than six-floor), nonbearing wall internal parting wall, thermal insulation rooms front panel,
Floorslab.
1.Unit weight grade (kg/m3):500, 600, 700, 800 (means 05,06,07,08 grade)
2.Compression strength grade (Mpa):A3.5, A5.0, A7.5, A10.0 (1Mpa=10kg/m2)
3.Drying shrinkage (mm/m):≤ 0.8
4.Heat conductivity(w/m.K):0.09-0.22
5.Sound-proofing performance(db):40-47.75
6.AAC Machine:

7.Company Profile:
ShanDong SUNITE Machinery Group Co., Ltd. is a Chinese manufacturer of dedicated machinery for construction blocks and panels. Our company offers complete production lines for premium building components such as the autoclaved sand-lime brick, autoclaved aerated concrete block, and autoclaved aerated concrete / autoclaved lightweight concrete panel. Additionally, we provide various types of pressure vessels and block-making machines. By choosing SUNITE, customers can enjoy professional benefits with our dedicated services for design, installation, layout planning, technology transfer, and production guidance.
Welcome to visit our company
Name:Kevin

Parameter Name	Parameter Value
Fly ash	65-70%
cement	6-15%
lime	18-25%
gypsum	3-5%
Aluminum powder paste	8
Water & material rate	0.60-0.65
Casting temperature	36-40°C
Aluminum mixing time	30-40s

Parameter Name	Parameter Value
Sand	55-65%
Cement	10-20%
Lime	20-30%
Gypsum	2-3%
Aluminum powder paste	8
Water & material rate	0.65-0.75
Casting temperature	35-38°C
Aluminum mixing time	30-40s
