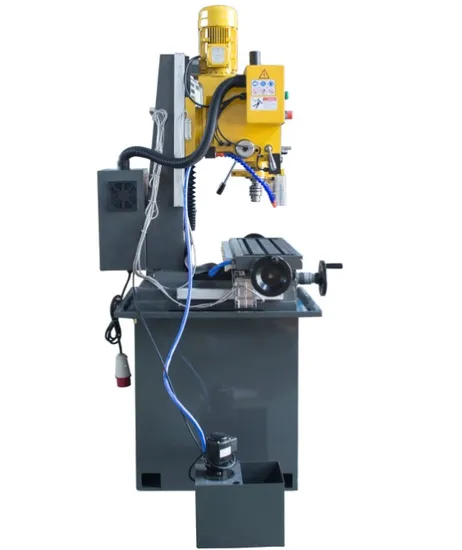

ZAY7045V Variable Speed Milling machine with CE Standard
| US$1,200.00-1,700.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
ZAY7045V
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Condition
New
Table Size
800X240mm
Drilling Capacity
45mm
Max Face Mill Capacity
800mm
Spindle Travel
130mm
Packing Size
770*880*1160mm
Transport Package
Standard Plywood Package
Specification
CE
Trademark
WMT
Origin
Anhui
HS Code
84592900
Production Capacity
50sets/ Month
Product Description
Feature
Variable speed;Milling,drilling,tapping,boring and reaming functions;Head seivels+-90°vertically;Micro feed precision;Adjustable gibs on table precision;Strong rigidity, powerful cutting and precise positioning;
Variable speed type.
Main specification
Gear head and square column
| Model | ZAY7032V | ZAY7040V | ZAY7045V |
| Max drilling capacity | 32mm | 40mm | 45mm |
| Max Face mill capacity | Φ63mm | Φ80mm | Φ80mm |
| Max End mill capacity | Φ20mm | Φ32mm | Φ32mm |
| Max distance from spindle nose to table | 400mm | 450mm | |
| Min distance from spindle axis to column | 260mm | ||
| Spindle travel | 130mm | ||
| Spindle taper | MT3 , MT4 or R8 | ||
| Range of spindle speed | 100-530rpm 530-2600rpm | ||
| Swivel angle of headstock (perpendicular) | ±90° | ||
| Table size | 800×240mm | ||
| Forward and backward travel of table | 175mm | ||
| Left and right travel of table | 500mm | ||
| Motor Power | 1.1KW/1.1KW/1.5KW | ||
| Net/Gross weight | 300kgs/ 350kgs | ||
| Packing size | 770×880×1160mm | ||
| Loading amount/20" container | 36pcs | ||
