Fully Automatic Autoclave for Food Sterilizer Retort Machine, Canned Food Sterilization Retort Machine Sterilizing

Product Description

Product Description
What is a Retort machine? The function of the retort machine is to make the food accept the three processes of heating, heat preservation and cooling in aclosed environment, so as to control the pathogenic bacteria in the food within a certain amount, prevent reproduction within the set shelf life, and keep the nutritional components of the food from being damaged. It is a special high-temperature disinfection equipment for food manufacturers such as flexible packaging, tinplate, glass bottle and gas box.

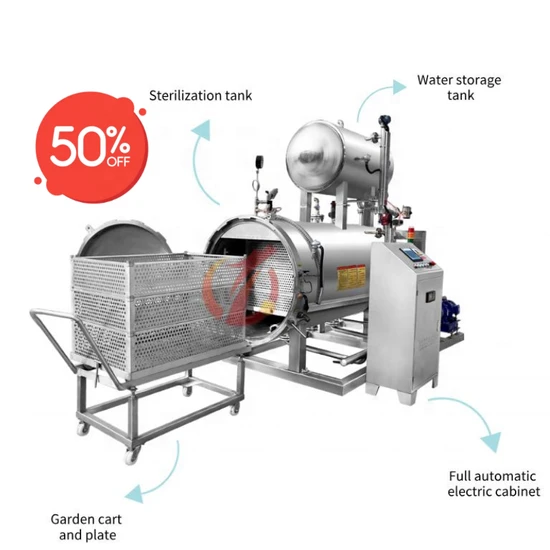

The retort machine is composed of pot body, pot cover, opening device, locking wedge,safety interlocking device, track,
sterilization basket, steam nozzle and several pipe orifices.
Process diagram of retort machine
All accessories of the retort machine are complete.
Product parameters
Detailed parameters of various types of retort machine Note: the output is only for reference, and the specific sterilization output is calculated by installing the product size

Diameter * barrel length (mm)	Powerkw	Volumem³	Weightkg	Overall dimension mm	Yield(kg/Each batch)	Push plate, car	Plate sizemm
400*800	13.5	0.1	150	1650*850*1400	20	1 cart 1 plate	800*280*280
500*800	27	0.15	200	1700*900*1650	40	2 cart 1 plate	800*300*150
600*1000	27	0.36	320	1900*1100*1900	100	3 cart 1 plate	1000*400*133
700*1200	27	0.5	650	2200*1200*210	150	3cart 1 plate	1200*450*150
800*1500	50	0.75	750	2800*1400*2400	250	8 cart 2 plate	750*500*125*2
900*1800	60	1.14	1.3T	3500*1600*3200	300	8 cart 2 plate	900*600*150*2
1000*2200	80	1.73	1.7T	3800*1600*3300	500	10 cart 2 plate	1100*650*150*2
1200*2700	8KW Water pump	3.05	2.2T	4700*1900*4000	800	15 cart 3 plate	900*800*160*3
1200*3200	8KW Water pump	3.61	2.5T	5000*1900*4000	1200	20 cart 4 plate	900*800*160*4
1200*3600	8KW Water pump	4.07	2.8T	5500*1900*4000	1300	20 cart 4 plate	900*800*160*4

Application
The retort machine is applicable to the sterilization of canned products such as glass bottles, iron cans, pet plastic bottles and vacuum bag soft packaging products. It can be used for beverages, milk, fruit juice, cans, fruits and vegetables, seafood, meat products, pet food, etc.
Food factory, restaurant and canteen are available.
Product packaging
Export packaging of Export packaging of food sterilization machine/retort machine
