Small Scale Mining Crushing Plant 5 Tph Rock Stone Hammer Mill Crusher for Small Miners in Africa

Product Description

Small Scale Mining Crushing Plant 5 Tph Rock Stone Hammer Mill Crusher for Small Miners in Africa
Product Description
Hammer crusher is suitable to crush the medium hardness and brittle material in the mining, cement, coal, metallurgy, building materials, highway, gasification and so on.
It has the simple structure, high crushing Ratio, high production efficiency, and can be dry or wet crushing .
The grate gap of the equipment can be adjusted according to user requirements to get the different final sizes to meet the different needs of different users.

Application
Mini used glass stone hammer mill crusher for sale is widely used in the work of mine, building material, road, railway, irrigation, chemical industry, ect.
It is especially used to crush limestone and medium hard materials which compression strength are less than 200Mpa.Compared with other hammer crushers, Mini hammer stone glass crusher machine price uses alloy composite hammer head with high abrasion performance of hammer, large rotational inertia and high rotor kinetic energy.
Working Principle
In the limestone hammer crusher machine, the motor drives the rotor to rotate at a high speed through the belt, and on the rotor there are series of hammers.
When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them, the crushed products meeting the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushing area by the hammers for being re-crushed until they reached the required size.
Technical Data

Model	PC400x300	PC600x400	PC800x600	PC1000*800	PC1200*1000
Diameter /mm	400	600	800	1000	1200
Length /mm	300	400	600	800	1000
Speed r/min	1100	980	980	980	650
Max Feeding Size /mm	<200	<250	<250	<300	<400
Output Size /mm	5-10	5-15	5-20	5-20	5-25
Capacity t/h	3-5	6-10	30-60	60-100	100-200
Power /Kw	11	18.5	46	75	110-132
Hammer /	16	20	24	30	18
Over dimension L*W*H/mm	2000*850*1000	2010*1081*1240	2280*1500*1705	3072*1720*2121	1900*2025*21

In the hammer crusher mill machine,the motor drives the rotor to rotate at a high speed through the belt,and on the rotor there are series of hammers.when the material get into the working area of hammers,the rotating hammers with high rotation speed are crushing the material,the crushed product meeting the required size can be discharged by the outlet and become the final prodcuts,

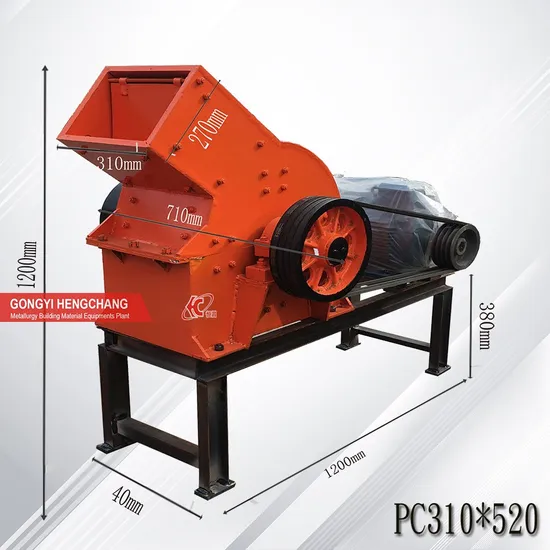

Detailed Image
Company Profile
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, a professional manufacturer specializing in the production of coal slurry dryer, coal slime dryer , coal dryer ,sawdust dryer , fly ash dryer , slag dryer ,vinasse dryer and so on. We have professional engineers and experienced workers in our factory, we ensure that we supply good quality and good price to our customers.
Customer Visit & Our Service

(A) Pre-sale services: Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments. 1.Select equipment model; 2.Design and manufacture products according to clients' special requirement; 3.Train technical personnel for clients; 4.Services during the sale; (B)Provide considerate services to minimize clients' worries: 1.Assist clients to prepare for the first construction scheme; 2.Install and debug the equipment; 3.Train the first-line operators; 4.Examine the equipment; 5.Take initiative to eliminate the troubles rapidly; 6.Provide perfect service; 7.Provide technical exchanges.. (C).After-sale services:Provide considerate services to minimize clients' worries:1.Assist clients to prepare for the first construction scheme;2.Install and debug the equipment;3.Train the first-line operators;4.Examine the equipment;5.Take initiative to eliminate the troubles rapidly;6.Provide perfect service;7.Provide technical exchanges...

Customer cases
Our machine has been sold to Germany, Australia, Japan, Mexico, Philippines, Indonesia, Russia, Uganda, Uzbekistan, Zimbabwe, etc. and our products are well received by customers. Welcome to inquiry!
Packing and delivery
Packaging Details:We will make different packaging according to different machine sizes standard international export packing,container, wooden box.Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
FAQ
Q: For providing you the suitable quotation we need to know the following information:
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
Remarks: The price will depend on different models.
Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
