Maize Dryer Machine Grain Corn Wheat Paddy Rice Dryer Drum Drying Machine

Product Description

Product Description

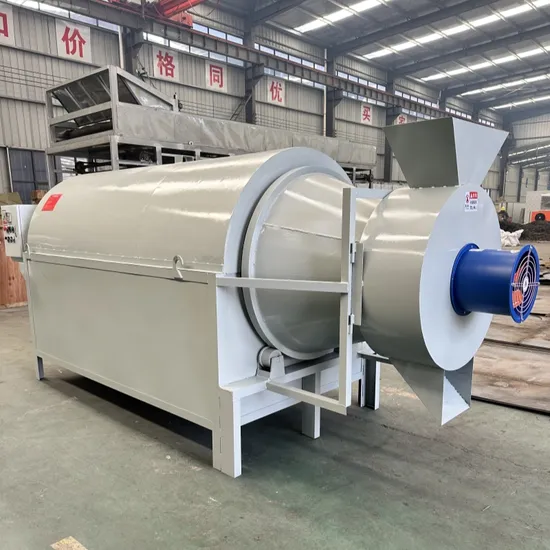

Electric Heating Rotary Drum Dryer / Automatic Heating Drying Electromagnetic Roaster Drum Dryer
Dryer machine including box and drum two parts, the main body adopts the reverse flow tower type internal circulation structure,the overall modular structure,which make it easy to disassemble and transport, small occupation, good drying quality, low labor operation intensity, low equipment cost.Integrated butt joint design of heating system and drum, compact structure, low energy consumption, high thermal efficiency.Small dryer conform to international continuous improvement of material drying quality, reduce energy consumption, reduce losses, conform to the green, quality, fresh drying concept.
Features 1.Take hot air as the drying medium, adopt the cycle drying process, the material is evenly heated and fully dehydrated, and the quality after drying is good; 2.equipped with automatic online temperature measurement, humidity measurement device. 3.automatic shutdown, simple operation, greatly reduce labor costs. 4.At the same time at dry can also achieve the purpose of sterilization and deodorization. 5.Wide application range and good drying uniformity
Product Parameters

Model	Drum Size(MM)	Dimensions(MM)	Motor/Heating Power(KW)	Output (KG/h)
XD-50	500*530	1470*750*1200	0.75kw/14kw	50
XD-100	640*750	1750*850*1250	1.1kw/19.2kw	100
XD-150	750*880	1750*950*1250	1.1kw/22.5kw	150
XD-200	800*1000	2200*1050*1400	1.5kw/26kw	200
XD-300	900*1000	2200*1150*1400	1.5kw/33kw	300
XD-500	1000*1500	2900*1300*1600	3kw/43kw	500
XD-800	1200*2000	3400*1500*1800	4kw/63kw	800
XD-1000	1200*2500	3900*1500*1800	4kw/78kw	1000
