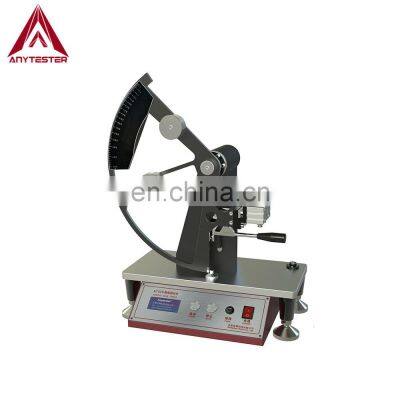

Fabric Film Elmendorf Tearing Tester with Large LCD Touch Screen

Product Description

Product Description
Product DescriptionAT494 Film Elmendorf Tearing Tester is used to determine the tearing resistance of film, sheet, flexible PVC, PVDC, waterproof roll, weaving material, polyolefin, polyester, paper, board, textile, non-woven fabrics and other material.StandardISO 6383, 1974ASTM D1922, D1424, D689GB 11999, 455.1, 455.2TAPPI T414SpecificationModelAT494Test range0~200gf, 0~400gf, 0~800gf, 0~1600gf, 0~3200gf, 0~6400gf (Selectable)Clamp modePneumaticRelease modePneumaticResolution1gfArm of force104±1mmTearing initial angle27.5 ±0.5°Tearing distance43 ±0.5mmDetails & Features★The machine shell is treated with metal baking paint, with imported special aluminum working table and operation panel.★ Micro-computer control, large LCD touch screen display★ With standard RS232 port★ Can perform the test on main machine or with computer control★ It has professional software to communicate with computer, supports data output of several test units, more testing items display on software, such as tearing index, tearing angle etc.★Equipped with different weights to meet different testing range★Pneumatically clamp the specimens and pneumatically release the pendulum.★Digital leveling controlling system to make the machine always working in perfect statusOperating Environment requirement:1.Temperature: 15℃-35℃2. Humidity: less than 70%RHOur CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
