Best Discounts E70jdsc Automatic Edge Banding Machine Wood Drilling

Product Description

Product Description

Description:

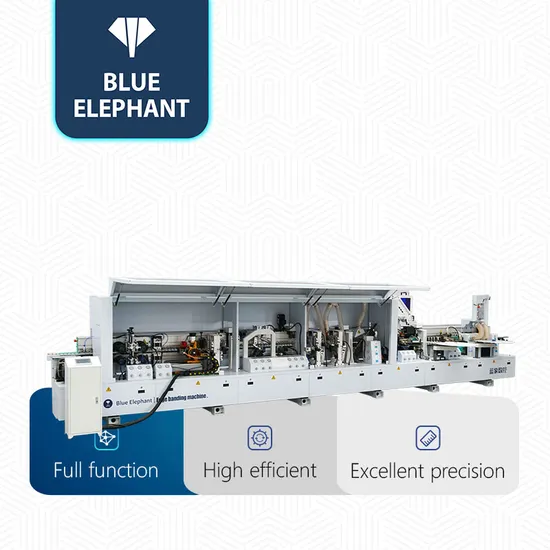

Compared with other common automatic edge banding machines, the E70JDSC side hole drilling edge banding machine can also synchronously drill holes. In addition, it can complete pre-milling, gluing, end cutting, rough and fine trimming, tracking chamfering, scraping, edge banding and polishing. And using high-quality CNC parts, we can use the E70JDSC side hole drilling edge banding machine in high and low temperature and other harsh environments. It has the characteristics of stable production, low maintenance and durability.Features:
1. The maximum speed of the E70JDSC side hole drilling edge banding machine can reach 23m/min, and the tracking chamfering speed can reach 18m/min. It can achieve high-speed and efficient production and is suitable for the mass production of panel furniture.
2. The E70JDSC side hole drilling edge bander premills the blasted edges and residues on the cutting surface of the board to make the amount of glue applied more uniform and the glue lines smaller.
3. Fast melting glue reduces the waiting time for melting glue, which highly improve the sol efficiency.
4. The E70JDSC side hole boring edge banding machine is a dual-purpose machine. It can also perform side drilling while sealing edges, reducing the space occupied by the machine and enabling more furniture processing processes. Parameters:

Model	E-70JDSC
Overall size	9250*960*1750mm
Total Power	21kW
Feed speed	16-23m/min
Machine Weight	3500kg
Panel Thickness	9-60mm
Panel length	≥60mm (no premilling) ≥200mm (premilling)
Edge band thickness	150*200mm
Working pressure	0.6Mpa
Voltage	380V, 50Hz, 3PH Optional: 220V 3PH; 220V 1PH

PS:All the working area and specifications can be customized according to your requests.
Detailed Photos
Sample & Application
Exhibition
Certifications
Our Service
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype Whatsapp Facebook to provide online services to customers. Company Profile
Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
Packaging & Shipping
Packaging Details
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
Delivery Detail: Shipped in 25-30 working days after payment
FAQ:
1. I need a CNC router, can you give me some suggestions?
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters
2. Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminum, Copper, and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience. As only the machine made by ourselves, the quality can be trusted, and the most important thing is that we can do better after-sales service. We know how to fix the problem of every part easliy, so welcome to visit to our factorv.
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to makeproduction. When the machine is completed, we will send pictures orvideos to you, and then you need to payd the balance. We will ship themachine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non- Standard machine and customized machines according to clients specific requirements, it will be 15 to 30 days.
