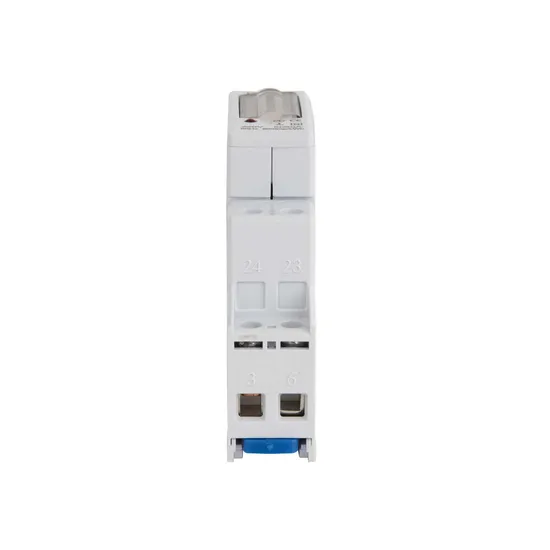

Dds-1560 Single Phase Two Wire Meter 220V 5-40A

Product Description

Product Description35MM Width kWh Meter
DDS-1560 INFORMATION
Modular DIN Rail Products offer a wide range of functions to be integrated in electrical installations with significant benefits for the user. It is designed for high level performance and are safe and fast to install.
TYNEHAM(TAINIHAN) have a complete range of DIN-mounted electricity meters for different applications, the meters are quick and easy to install due to their DIN-rail mounting.
It is highly accurate, durable, reliable, lower power consumptive, Creep proof and strong overloading capability. It according to the related Chinese requirement of GB/T17215.321-2008 and International requirement IEC62053-21.
DDS-1560 SPECIFICATIONS

1	Type	DDS-1560 LCD Display Without Backlight
2	Accuracy	Class 1
3	Rated Voltage (Un)	220V or other
4	Base Current (Ib)	5A, 10A or other
5	Max Current (Imax)	20A, 32A or other
6	Frequency (Hz)	50Hz Or 60Hz (±5%)
7	Starting Current (mA)	0.4% Ib
8	Power Consumption of Current	≤2W 10VA Per Phase
9	IP Class	IP51
10	AC Voltage Withstand	2KV for 1 Minute
11	Impulse Output Rate (Imp/kWh)	1600, 800 Or Other
12	Operating Temperature	-20ºC To +55ºC
13	Storing Temperature	-40ºC To +70ºC
14	Operating Humidity	≤75%
15	Storing Humidity	≤95%
16	Communication	N/A
17	LCD Display Backlight	Optional
18	Battery	N/A

DDS-1560 Function in Display and monitoring
kWh 5+1
