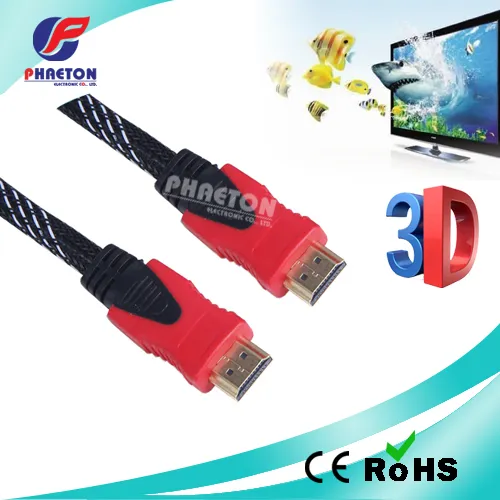

Data Communication HDMI AV Cable with Net Ferrite (pH6-1209)

Product Description

HDMI Cable 1.4 Version Function:
1.Expanded color space
HDMI 1.4V supports three new color space (gamut), makes users to be able to see better and more correct color on HDTV. HDMI standard defines a more traditional RGB color model with a wider range of available colors visible to guarantee a larger area of the panchromatic domain is close to human eyes.
2. Audio Return Channel
The new channel allows the HDTV through the HDMI cable directly to the audio features A / V Receivers, without additional one cable.
3.Support 3D Display
The new specification will define common 3D HDMI device formats and resolutions for home 3D system input and output section standardized, up to two 1080P resolution video streams.
4.Support most of multiplayers devices
HDMI is a standardized definition era of digital audio / video interface technology that can be used to set-top boxes, DVD players, personal computers, televisions, cameras, mobile phones and other digital devices with HDMI interface. HDMI can transmit both audio and video signals, the maximum data transfer rate of up to 10.2Gbps. HDMI while with broadband digital content protection.
5.Support newest 2KX4K resolution
HDMI device supports HD resolution will reach 4KX2K, four times the current 1080P. The specific format: 380X2160 24Hz/25Hz/30Hz; 4096X2160 24Hz.

Product Warranty:
1.We guarantee each HDMI cable will be tested when finished in factory.
2.If there are bad cables,we will promptly pay compensation to our customer without any charge.
Features:

Spec. Item	Details:
Connector	24K Gold-plated
Length	from 1-15meter
Speed	Super high 10.2Gbps
Working Temperature	-20 to 80 degree
Cable Conductor	36-22AWG
Material	Tinned copper,bare copper or slied copper
Differential impedance	100+/-15ohm
Far-end Crosstalk	-26db@300k-5GHz
Attenuation	5dB@300KHZ-825MHz
Intra-pair skew	11ps(max)
Inter-pair skew	1780(max)
Differential Delay	5.05ns/m(max)
Shape	Round Cable
Spec.	HDMI 1.3&1.4 Male/Male
Applications	PDPTV,LCD,HDTV,RPTV,DVD .etc

Package
Packaging:
1.One PE bag for one cable and then placed in one carton
2.According to customer's requirements
FAQ:

Q1:Are you a trading company or manufacturer?
We are professional manufacturer for audio&video cable . also we supply of different electrical and electronic items
Q2: why will you choice us :
more than 15 years of professional teams will give you good quality products ,good service ,and reasonable price .
Q3:Can we have our logo or company name to be printed on your products or the package?
We offer OEM , ODM . our designer can make special design for you .
Q4: Is the MOQ fixed?
The MOQ is flexible and we accept small order as trial order.
Q5:Can I have a visit to you before the order?
Sure,welcome to visit our company ..
our company is only one hour by train from shanghai
