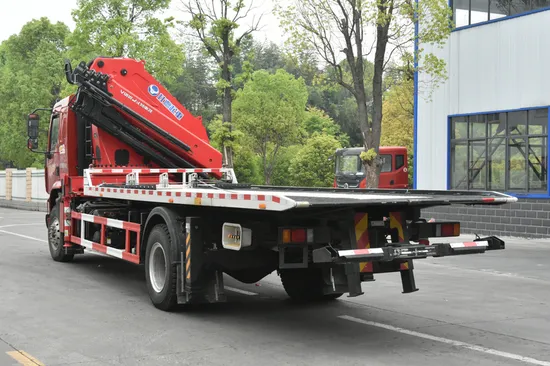

Wreckers truck with Hydraulic Crane Used For Road rescue
Basic Info.
Model NO.
SQ330ZB5
Feature
Truck Crane
Power Source
Hydraulic
Sling Type
Wire Rope
Max Lifting Height
13.8m
Max Oil Flow of Hydraulic System
60 L/ Min
Max Working Radius
11.4m
Max Lifting Moment
330kn.M
Outrigger Span
2330-7100mm
Boom Type
Knuckle Crane
Rotation Angle
360 degree all rotation
Crane Weight
4800kg
Max Lifting Capacity
16.5t
Application
Construction Usage, Workshop Usage, Container Usag
Material
HG785
Transport Package
Nude or Customized
Specification
4800kg
Trademark
HBQZ
Origin
China
HS Code
8426910000
Production Capacity
35 Unit/Units Per Month
Product Description
Hubei Jiaheng Technology Co., LtdHubei Best Crane Co., Ltd
(Truck Crane Professional Manufacturer)
Web: hbjh2013.en.made-in-china.com
Our Advantages
1). Use HG785D international standard high-strength steel to reduce the weight of the crane.2). The boom of the knuckle crane has used a hexagonal structure, reducing the lateral.3). Italian brand of balance valve, hydraulic lock, operated valve, hydraulic pump, and other core parts to ensure the micro-mobility, security, and stability.4). Parker brand oil seal and gasket for hydraulic pump.5). The brand remote control operates from Sweden.6). The factory is SGS certificated.
Detailed Photos
Product Parameters
| Model # | SQ330ZB5 /knuckle crane 10.65ton at 3m |
| Max Liftingmoment | 330Kn.m |
| Max Lifting Capacity | 10650kg/ 3.0m |
| 5400kg/ 6m | |
| 2800kg/ 9.6m | |
| 2200kg/ 11.4m | |
| Max Lifting Height | 13.8m |
| Max Working Radius | 11.4m |
| Boom Section | 4 stages |
| Rotation Angle | 360°All Rotaion |
| Rated Working Pressure | 28mpa |
| Oiltank Capacity | 120L |
| Related Oil Flow | 60 L/min |
| Outrigger Span | 2330-7100mm |
| Outrigger | 4, adjustable, Hydraulic operating. |
| Crane Weight | 4800kg |
| Installation Space | 1470mm |
| Swingtype | Planetary gear reduction |
| Safety Device | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device. |
| Options | Aux.winch,Aux.Boom,Remote control |
| Material | HG785D |
| Truck for reference | ||
| Truck brand | Dongfeng (other truck brand can be customized) | |
| Cabin | Driving type: 6x4, Left hand drive (Right hand drive type can be customized) | |
| Color is optional | ||
| Vehicle Main Dimensions | Overall size (L x W x H) | 11950x2490x3850mm |
| Wheel base | 5850+1350 mm | |
| Cargo Body | 8400*2300*550mm | |
| Weight in KGS | GVW | 25000 kg |
| Tare weight | 16250kg | |
| Front axle loading capacity | 2 x 2500 kg | |
| Rear axles loading capacity | 2 x27500 kg | |
| Engine | Type | Diesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Horse Power | 240HP (177kw) | |
| Max Torque | 1000N.m | |
| Emission standard | Euro V | |
| Max Speed | 102 km/h | |
| Gearbox | manual gearbox with 9 forwards & 1 reverses, with PTO | |
| Tire | 11.00R20 11 pieces including one spare tire | |
Company Profile
After Sales Service
Exhibition Show
Packaging & Shipping
FAQ
Hubei Jiaheng Technology Co., LtdHubei Best Crane Co., Ltd(Truck Crane Professional Manufacturer)Web: hbjh2013.en.made-in-china.com
