Product Description

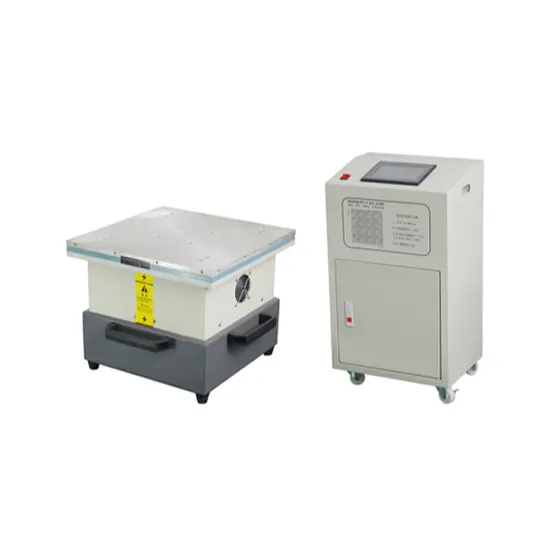

Electromagnetic Type Vertical Vibration Tester Shaking Table Universal Vibration Testing Machine Test Table
Technical parameters
1. Product overview: electromagnetic vibration test series are widely applicable to national defense, aerospace, communications, electronics and automobiles, home appliances and other industries.This type of equipment is used for detecting early faults, simulating actual condition assessment and structural strength test. The product has a wide range of applications, wide applicable surface, and remarkable and reliable test results.
(1.humanized operation and control, using professional control software control, make the equipment work more stable, more reliable
(2.the whole machine is made of compound industrial materials, precision processing, super quiet
(3.the table panel is made of magnesium aluminum alloy material, which can completely isolate the magnetic field interference and effectively prevent magnetization of the measured object
(4.sweep frequency and fixed frequency operation mode, adapt to different industry testing requirements
(5.high precision frequency output, four-point synchronous vibration, even vibration table
(6.strong anti-magnetic and anti-interference ability
(7.has the safe and reliable protection function
(8.the platform body adopts high efficiency and low noise fan to cool down, ensuring a long time of continuous operation.
Electromagnetic Type Vertical Vibration Tester Shaking Table Universal Vibration Testing Machine Test Table
Technical parameters 1.Frequency range (Hz) :5~400 2.Sweep frequency range (Hz) : 5~400 3.Maximum acceleration (m/s2) :170 4.Maximum test load (kg) : 20 5.Maximum no-load displacement (mmp-p) :0~2 (automatic adjustment) and 0~5 (manual adjustment) 6.Vibration waveform: sine wave 7.Vibration axial: vertical 8.Excitation mode: electromagnetic excitation 9.Vibration control mode: closed-loop control 10.Data acquisition mode: vibration data acquisition instrument + acceleration sensor 11.Acceleration sensor: 1 (built-in vibration table body) Sensor type: piezoelectric acceleration sensor
Signal input channel: 1 channel input, input impedance is greater than 220K ω, channel automatically set range, preset sensor sensitivity, coupling mode (DC)
Resolution: 24 bit A/D converter
Filter: Analog anti-aliasing filter +160dB/ OCT digital filter eliminates nonlinear phase distortion and aliasing
Signal conditioning: charge input, built-in sensor constant current source and charge amplifier.
SNR: > 100 dB
12, operation mode:
Fixed frequency mode (constant amplitude mode and constant acceleration mode)
Sweep mode (constant amplitude sweep and constant acceleration sweep)
Multi-stage mode (constant amplitude mode and constant acceleration mode)
13.the body shock absorption device: 1 set (suitable for high floors and laboratories)
14.sweep mode: linear
15.Operation mode: touch screen control (operation language: Simplified Chinese and English)
16.cooling mode: air cooling
17.operating temperature requirements (ºC) : 0~+40
18.working humidity requirements (%RH) : 0-90, no condensation
19.power supply requirements: single-phase AC 220V/50Hz ±10%
20.System power consumption (KVA) : 2.5
21.touch screen display LCD: Vellon 7.1 inch TFT LED
Touch screen parameters:
Touch screen brightness: 400CD /m2
Touch screen colors: 16.2m colors
Touch screen resolution: 1024 x 600
Touch screen contrast: 600:1
22, work table material: aluminum alloy
23, table screw size (standard) : M8 (customizable)
24, number of mesa screws: 8 (customizable)
25, total weight (kg) : 150
26, table size W.D.H (mm) : 450×450×43
27, body size W.D.H (mm) : 450×450×385
28, control cabinet size W.D.H (mm) : 500×400×860
