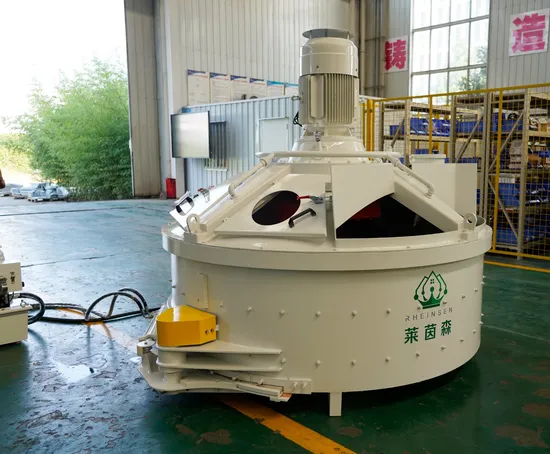

500L Vertical Shaft Planetary Concrete Mixer Cement Betoneira for Ceramics Site

Product Description

500L Vertical Shaft Planetary Concrete Mixer Cement Betoneira For Ceramics Site
Product DescriptionThe discharging door in mud mixer can be opened by hydraulic , pneumatic by hand e discharging door is three at most. And there is special sealing device on the discharging door to ensure the sealing reliable.
A special designed hydraulic power unit is used to provide power for more than one discharging door. On emergency, these discharging door can be opened by hand.
Maintaining door and security deviceWater device of concrete mixer
Overhead structure is used to water (patent products). It solves the problem of residual additive and water in pipe. Avoid the customer loss in formula changing. The nozzle which adopts spiral solid cone nozzle ,has a fine uniform tomization effect, large covering area and make the material more uniform mixing.Product Parameters

Type concrete mixer	CMP50	CMP100	CMP150	CMP250
Output capacity(L)	50	100	150	250
Input capacity(L)	75	150	225	375
Output weight(Kg)	120	240	360	600
Mixing power(Kw)	3	5.5	7.5	11
Dischar ging power(Kw)	optional
Planet/mixing arm	1/2	1/2	1/2	1/2
Paddle(nr)	1	1	1	1
Discharging paddle(nr)	1	1	1	1
Weight(Kg)	700
Lifting power(Kw)
Dimension(L*W*H,mm)	950*790*1200	1670*1460*1450	1670*1460*1620	1860*1650*1780
Type concrete mixer	CMP330	CMP500	CMP750	CMP1000
Output capacity(L)	330	500	750	1000
Input capacity(L)	500	750	1125	1500
Output weight(Kg)	800	1200	1800	2400
Mixing power(Kw)	15	18.5	30	37
Dischar ging power(Kw)	optional
Planet/mixing arm	1/2	1/2	1/3	2 / 4
Paddle(nr)	1	1	1	1
Discharging paddle(nr)	1	1	1	1
Weight(Kg)			3900	6200
Lifting power(Kw)			7.5	11
Dimension(L*W*H,mm)	1870*1870*1855	2230*2080*1880	2580*2340*2195	2890*2602*2220

Factory Production LineMittelrhein international company is located in Shandong Logistics Center, featuring high-efficiency domestic logistics in China and low-cost logistics expenses.
Shandong is a major heavy industry hub in China. With 20 years of procurement history, our team provides efficient and high-quality services. We have long-term partnerships with hundreds of different factories, all of which have passed our product quality selection.
Our international procurement team is dedicated to providing high-quality products and reliable after-sales services, solving the after-sales issues of overseas buyers. Our international logistics have also been carefully selected.
The long-term partner logistics companies possess highly flexible control capabilities, whether it is rail transportation, sea transportation, or combined transportation. The routes and emergency transfer operations are very mature and experienced, which can better reduce unnecessary effort, time, and shipping cost losses for our customers.
Packaging & Shipping After Sales Service
1.24 hours support.
2.Arrange the install and test without delay.
3.One year guarantee for probems caused by quality.
4.Supply spare parts in time.
5.Engineers can conduct on-site surveys as requested by the client.
Download informationYou can find download concrete mixer files
