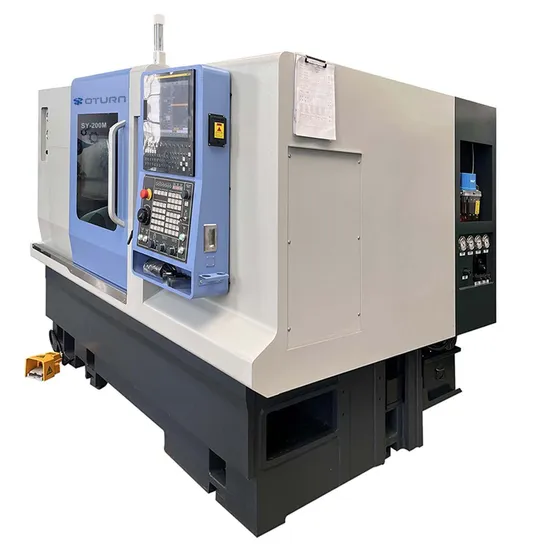

Oturncnc High Precision Slant CNC Lathe CNC Turning Center with Fanuc

Product Description

Product Description
The Precision CNC Lathe with Dual Spindle redefines efficiency in machining with its capability to process both ends of a workpiece simultaneously in one clamping. This breakthrough drastically simplifies manual operations, boosts output, and minimizes processing steps. Equipped with a second spindle, it ensures full turning and efficient workpiece transfer during machining, significantly reducing cycle times. Designed with a 30-degree inclined structure, this lathe boasts high precision, extraordinary rigidity, and superb cutting stability. The robust, one-piece lathe bed, crafted from high-strength HT300 cast iron and optimized through finite element analysis, guarantees exceptional mechanical rigidity and stability. This ensures long-term precision, enhances processing stability, tool lifespan, and stress relief accuracy. The high-strength roller linear rail design, combined with a screw pre-tensioned transmission system, optimizes rigidity performance. Not to mention, its sleek, modern appearance aligns perfectly with contemporary trends.
Main features of this machine tool:
1. Direct Drive Synchronous Electric Spindle: Featuring a magnetic ring incremental encoder with 20 arc seconds positioning accuracy and 40 arc seconds C-axis indexing accuracy. This spindle eliminates vibration, achieving nose deflection accuracy within 0.002MM, enhancing workpiece surface finish. The rear-mounted rotor facilitates swift installation and maintenance, while the spindle motor's cooling system mitigates thermal displacement effects, maintaining a constant operating temperature. This spindle system, rigorously tested for dynamic balance, excels in retaining accuracy, rigidity, and efficiency, making it adept for both finishing and heavy cutting. Ideal for mass production of complex, high-smoothness products.
2. High Rigidity Integrated Design Servo Power Turret: This turret ensures rapid and precise tool changes, and when combined with the power milling of a high-speed power axis, it delivers outstanding turning and milling capabilities. The tool holder employs a high-rigidity BMT installation interface, with the power transmission shaft driven by a servo spindle motor.
3. Superior Roller Linear Guides and Ball Screws: Equipped with heat-treated, precision-ground ball screws for optimal accuracy and durability. Each axis features a direct transfer structure and double-anchor pre-relay method to minimize heat displacement, thus significantly enhancing processing accuracy. High-rigidity, large-sized, heavy-duty linear slide rails maintain accuracy under impact, providing smooth, low-noise displacement and prolonging service life.
4. Comprehensive Hydraulic and Lubrication System: Featuring high-quality hydraulic pumps and valves, this system significantly reduces the failure rate. Designed for simplicity and reliability, it ensures robust performance.
5. Taiwan Rotary Chuck Cylinder and Optional Automatic Chip Removal Device: These features greatly reduce operator labor intensity, ensuring safe and efficient production. All functional components are programmable and controllable, with various functions designed and installed according to user-specific requirements.special fixture.
Product Parameters

Item	Unit	SY200M
Max. swing diameter over bed	mm	Ф600
Max. processing diameter	mm	Ф450
Max. processing diameter over tool holder	mm	Ф230
Max. processing length	mm	400
Distance between centers	mm	550
Spindle type	/	A2-6
Spindle bore diameter	mm	Ф65
Max. bar diameter	mm	Ф52
Max. spindle speed	rpm	4300
Direct drive spindle motor power	kw	18/22
Sub-spindle direct drive motor torque	N.m	105-227
Hydraulic Cylinder/ Chuck	/	8"
X/Z axis motor power	kw	2.4
X/Z axis travel	mm	240/450
X/Z axis rapid speed	mm/min	24
X/Z positioning accuracy	mm	±0.005
X/Z Repeatability	mm	±0.003
Slide rail type	/	Roller35
Power turret type	pcs	BMT55-12T
Power turret motor	Kw	5
Max. power tool holder speed	rpm	5000
External diameter tool holder specification	mm	25x25
Internal diameter tool holder specification	mm	Ф40
Adjacent tool change time	sec	0.15
Programmable hydraulic tailstock	/	Programmable
Max. Tailstock travel	mm	360
Sleeve diameter	mm	Ф100
Sleeve travel	mm	100
Sleeve taper	/	MT#5
Machine size	mm	2500*2100*2000
Machine weight	kg	4200
Cutting fluid tank volume	L	150
Hydraulic unit box volume	L	40
Hydraulic pump motor power	kw	1.5
Lubricat tank volume	L	2
Automatic lubrication pump motor power	W	50
Coolant water pump power	W	750

Products Configurations
Company Profile

Quality Control
Our Advantages
FAQ
Q1: How can I choose the most suitable machines?
Please provide your specifications so that we can recommend the best model for you. Alternatively, you can select the exact model you need, or send us your product drawings, and we will help you choose the most suitable machines.
Q2: What are the main products of your company?
We specialize in a wide range of machines, including CNC Lathe Machines, CNC Milling Machines, CNC Turning Machines, Vertical Machining Centers, Horizontal Machining Centers, Lathe Machines, and Turning and Milling Composite Processing Machines, among others.
Q3: Where is your factory located? How can I visit?
We have five factories located in Guangzhou, Quzhou, Ningbo, and Guangdong. We warmly welcome you to visit us.
Q4: How do you handle transportation?
We provide transportation solutions including DDP, CIF, FOB, and FCA.
Q5: What are the payment terms?
T/T, 30% initial payment when ordering, and 70% balance payment before shipment.
Q6: What is the MOQ?
A: 1 set. (Only some low-cost machines require more than 1 set.)
We want to know:
1. We strongly suggest you provide the size and material of your workpiece for our evaluation. If possible, please send us the workpiece drawing so that we can recommend the most suitable model for you.
2. If you need a CIF price, please kindly inform us of the port of destination.
