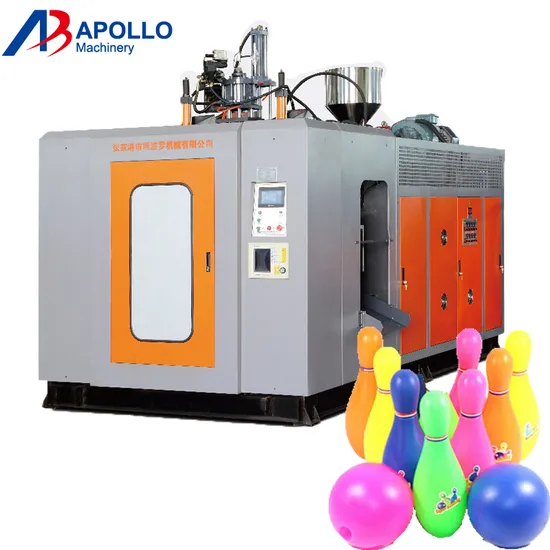

New Style High Quality Oil Barrel Bottle Blow Moulding Machine
| US$40,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
ABLB75II
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
Application
Bottle
Max.Product.Volume
7.5L
Blow Moulding Type
Extrusion Blow Moulding
Brand Name
Apollo
Power
30kw
Max Size of Mold
400*450
out Put HDPE
100kg/H
Screw Diameter
75
Blowing Pressure
0.6MPa
Weight of machine
8t
Transport Package
Film Packing
Specification
ISO9001
Trademark
APOLLO
Origin
Zhangjiagang City, Jiangsu Province, China
HS Code
84773000
Production Capacity
270PCS/H
Product Description
ABLB75II full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 3.5L. This design is low power consumption and very stable.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 7.5L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
Technical Parameters: ( ABLB75II )
| Max. Product volume | 7.5 liters(single die head) |
| Screw diameter | 75mm |
| Screw L/D ratio | 24 L/D |
| Screw drive power | 22 KW |
| Screw heating capacity | 7 KW |
| No.of heating zone | 4 zones |
| Output of HDPE | 100KG/H |
| Oil pump drive power | 11 KW |
| Clamping force | 78KN |
| Max.size of mold | 148-568mm |
| Mold stroke | 400 X 450mm |
| Max.die diameter | 160mm |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.8 M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 80 L/MIN |
| Size of Machine | 3.8x2.2x2.8m |
| Weight of machine | 8 ton |
