Configuration Floor Standing Hanging Rod Type Rubber Cooling Line

Product Description

Technical parameters
1)Maximum width of rubber sheet 800mm
2)Rubber sheet thickness 4-12mm
3) The maximum length of rod drooping 1400mm
4)Power supply 440V/60Hz
5)Max liner speed of front access conveyor belt 4-32m/min
6)Maximum moving speed of rod 2.2m/min
7)Rubber swing speed 10~20 times/min
8)Fan draught power 0.55Kw
9)Number of fans 20set
10)Rubber sheet stocked in the wind box 193M
11)(Single rubber mixing machine work, the rubber sheet may be stored in a wind box for about 60 minutes)
12)final temperature Room temperature+5°
13)Full production line length About15.5M Product Parameters

Model No. Main parameter	XPG-600~700	XPG-800~1000
Rubber sheet thickness	(4-12)X600~700	(4-12)X 800~1000
Max liner speed of front access conveyor belt	40m/min	40m/min
Maximum moving speed of rod	0.117-2.2m/min	0.117-2.2m/min
Fan draught power	0.37KW 5760m3/h	0.37KW 5760m3/h
Rubber swing speed	1.3m 10-16 times /min	1.3m 10-16 times/ min
Final temperature	Room temperature+5°	Room temperature+5°

Advantage:
We have designed protect net on the machine,and that will ensure the worker in safety condition.
Each four cooling fan in one suit,so can avoid machine stop in condition of one fan broken.
The whole machine is anti rust,and will not rust in future long time. Detailed Photos

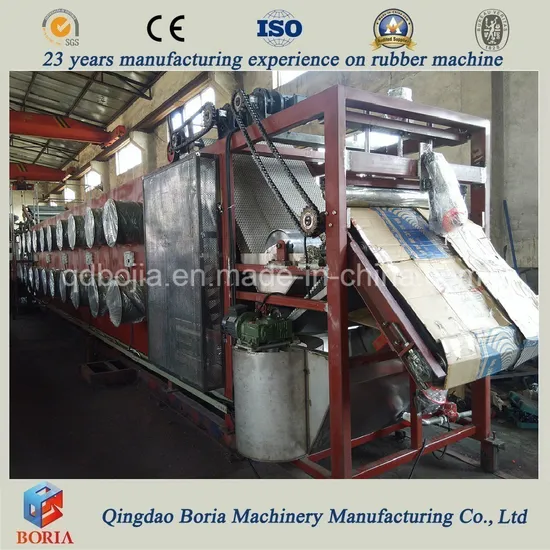

Machine pictures:
Packaging & Shipping Packing method: Remove the motor and rotary joint, and pack the main body in an integrated manner. A small cabinet.
Company Profile Qingdao Boria Machinery Manufacturing Co., Ltd is recapitalized combination from Qingdao Bojia Machinery Manufacturing Co., Ltd in 2016. And Qingdao Bojia Machinery Manufacturing Co., Ltd.
changed officially its name from a state-owned machinery company in October 2007, is one professional machinery manufacturer. Our company have one good and high quality design and manufacturing technology development group, often communicate with the customers and technology authority departments of rubber industry, constantly to improve and update our products which can meet requirements of the customers.Our company guarantee to provide you excellent pre-marketsale and after-sale service, timely technology information consulting, accessories and consumable parts supply etc, also can design & manufacture various non-standard products according to users' requirements.
Our main products are: Vulcanizing Press Series; Batch Off Cooling Machine Series;Open Mixing Mill Series; Rubber Cutting Machine Series; Rubber Slitting Machine Series; Longitudinal Cutting Machine Series; Cushion Cloth Renovating Machine Series; Conveying Belt Molding Machine Series; Conveyor Belt Machine Series; Other Rubber Machines; Design and manufacturing of Automatic Production Line.
Our Advantages Qingdao Boria Machinery is a professional machinery manufacturing enterprises, the company has all kinds of CNC precision machining equipment, processing power is strong; with independent professional rubber machinery design R & D team, and with China's long history of the most professional four One of the major rubber industry institutions, "Qingdao Institute of Chemical Technology" long-term rubber technology, formula, machinery and equipment, and other aspects of technology, practice and cooperation; Qingdao Boca machinery can be based on customer needs and customer technical parameters for equipment design and Ratio. At the same time the company focused on the automation of equipment research and development, manufacturing lines can be unmanned design, improve the user's labor productivity, reduce the labor intensity of workers, and stabilize product quality.
FAQ 1.Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.

2. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.

3. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.

5. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation, quality, integrity and efficiency. Also we have had much good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.

6. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Liuting airport.
We will pick up you at the airport.
If you have more information to learn, please send us a private message and we will provide you with the highest quality service.
