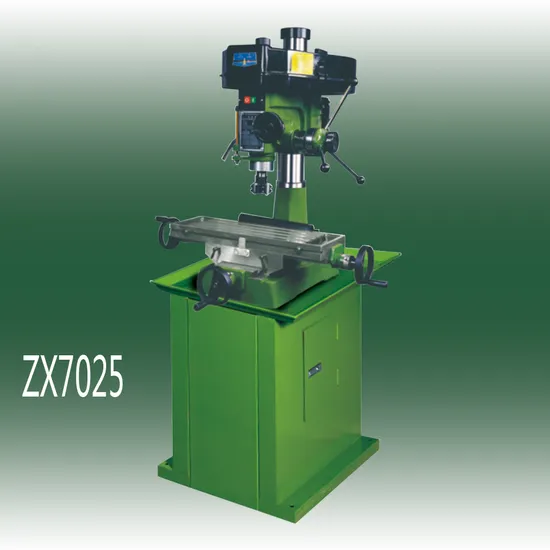

Zx7025 Small Bench-Type Milling and Drilling Machine Benchtop Milling Machine for Sale
| US$1,551.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZX7025
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Motor
750W
Max Drilling Capacity
25 mm
Transport Package
Wooden Case
Specification
76x97x103cm
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300
Product Description
| Model | ZX7020 | ZX7025 | ZX7032 |
| Max.drilling capacity | 20mm | 25mm | 31.5mm |
| Width of face milling | 50mm | 63mm | 80mm |
| Diameter of vertical milling | 12mm | 13mm | 22mm |
| Spindle travel | 115mm | 90mm | 130mm |
| Distance spindie axis to column surface | 240mm | 202mm | 202mm |
| Max.distance spindle nose to worktable | 450mm | 380mm | 450mm |
| Spindle taper | MT.2 | MT.3 | MT.3 or R8 |
| Spindle speeds range | 215-2000rpm | 100-2150rpm | 100-2150rpm |
| Spindle speeds | 5 | 12 | 12 |
| Dimension of table | 590x190mm | 585x190mm | 730x210mm |
| Travel of worktable | 370x145mm | 370x145mm | 500x175mm |
| Overall height | 1000mm | 930mm | 1100mm |
| Headstock travel | 350mm | 300mm | 315mm |
| Motor | 750W | 750W | 1500W |
| G.WJN.W. | 220/180kg | 245/220kg | 310/285kg |
| Ship measurement | 93x93x100cm | 76x97x103cm | 108x77x120cm |
