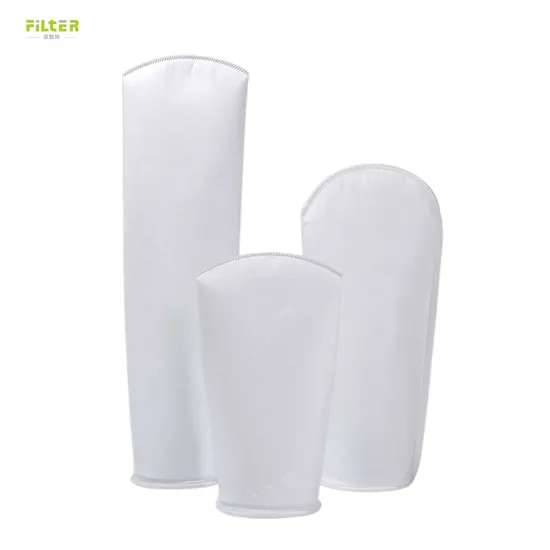

1 5 10 25 50 100 150 Micron Liquid Industrial Nylon PP Polyester Filter Mesh

Product Description

1 5 10 25 50 100 150 Micron Liquid Industrial Nylon PP Polyester Filter Mesh:
1. Product Describtion:Nylon filter bag: remove the filter aid in beer and filtration and remove of cooking oir has been burning fat, tin coating filter, supplement water filtration.
Advantage: Simple operation, increase the work efficiency, increase product quality, reduce the cost of filtration.Polyester & PP filter bag:
* Polypropylene and polyester materials meet regulations for food.* Silicone-free construction.* High dirt holding capacity.* Ability to remove both solid and gelatinous particles.* Low cost.* Glazed/singed finish on Polypropylene & Polyester reduces fiber-shedding.2. Specifications:
1) Open top for easy cleaning
2) Hanging loop
3) Use for making different beverage, such as juice.
4) Shape,Size can be customized.
3.Liquid Filter Bag Technical Data:

Bag Construction	Filter Media	Micron(μm)	Top Design	Bottom Design
Sewing Thread Hot-melt	PE,PO/PP,NMO	1,5,10,25,50,80,100,125, 150,200,250,300,400,600, 800,1200,2500	Zinc-plated SS304 Plastic Ring	Round or Square

Item	Specifications(mm)	Material	Micron(µm)	Technology	Ring Material
01	180*430	Nylon	1-1200um	sewn	SDS/PP
02	180*810	Nylon	1-1200um	Sewn	SDS/PP
03	105*230	Nylon	1-1200um	Sewn	SDS/PP
04	105*380	Nylon	1-1200um	Sewn	SDS/PP
05	155*560	Nylon	1-1200um	Sewn	SDS/pp

Filter Bag Material Performance Table

Filter Media	Temp.(oC)	Strong Acid	Weak Acid	Strong Alkaline	Weak Alkaline	Oils and Fats	Glycol Ether	Organic Solution	Water Microorganism	Aromatic
PE	150~170		√			√	√	√	√	√
PO/PP	90~110	√	√	√	√	√		√	√	√
NMO	150~170			√	√	√		√	√
PTFE	250~300	√	√	√	√	√	√	√	√	√

Filter Diameter Reference Table:

Mesh	30	35	40	45	50	60	70	80	100	120	140	170	200	230	270	325	400	425	500	625	800	1250	2500	6250	12500
μm	595	500	420	354	297	250	210	177	149	125	105	88	74	63	53	44	37	33	25	20	15	10	5	2	1

The Chemical Resistance of Liquid Filter Bag:

The Chemical Resistance Of Liquid Filter Bag
Fiber Material	Polyester (PE)	Nylon (NMO)	Polypropylene (PP)
Abrasion Resistance	Very Good	Excellent	Very Good
Weakly Acid	Very Good	General	Excellent
Strongly Acid	Good	Poor	Excellent
Weakly Alkali	Good	Excellent	Excellent
Strongly Alkali	Poor	Excellent	Excellent
Solvent	Good	Good	General

Producing Process(Air Filter Bag and Liquid Filter Bag):
Applications:
Application:
More Production:
Packaging & Delivery:
Exhibization:
Certificate:
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
