Agricultural Plant Protection Spraying Solid Fertilizer Uav 40 L Professional Drone SD-X640

Product Description

Product Description

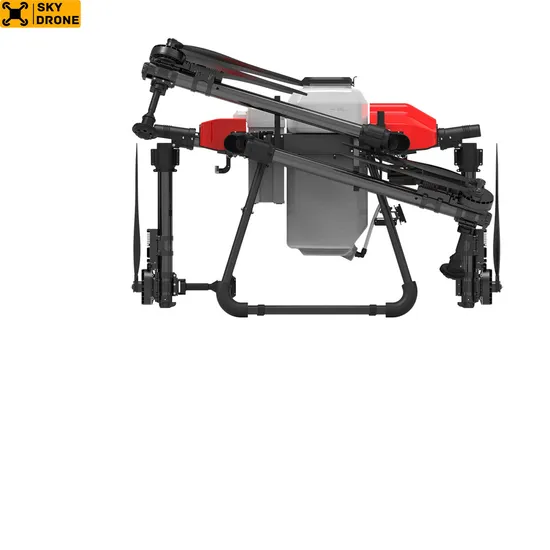

SD-X640
SD-X640 electric six-rotor UAV is a high-end industrial multi-rotor UAV with high equipment reliability and strong stability. It has many advantages such as basic anti-rain, anti-daily dust, anti-third-fourth wind, and strong anti-electromagnetic interference.
Application scenario: Used in agriculture and forestry plant protection, powder spraying, smoke spraying, fertilization, feeding fish and shrimp feed, material transportation and delivery, fire extinguishing bomb delivery and other fields. Product Parameters

Specifications
Expand Size	2038x2188x807 mm
Folded size	1248x826x935 mm
Maximum wheelbase	2320 mm
Arm size	47x50mm carbon fiber tube
Medicine box volume	40 L
Spreading box volume	50 L

Recommended configuration
Flight control	(optional)
Power system	X11
Battery	18S 30000mAh
Overall weight
15kg (Frame weight)
32Kg(without battery)
Maximum take-off weight
Maximum take-off weight	85.7kg (near sea level)
Hover time
30000mAh & take-off weight 45.7kg)	Hover for 25min with no load
30000mAh & take-off weight 85.7 kg)	Hover for 10 minutes with full load
Maximum effective spray width
3-5.5 m(About 1.5-3 m from the crop height)
Medicine box volume
Full load 40L (working load, full load 40KG)

Detailed Photos
Certifications

Packaging & Shipping

Company Profile
Daoce Innovations is a well-known brand and manufacturer in China. With a stable and highly skilled workforce, our factory is located in China. We are a high-tech enterprise in China and a professional provider of agricultural drone protection and industrial transportation drone solutions.
We specialize in agricultural plant protection and industrial transportation drone application solutions. We adhere to the use of high-quality key components to ensure stable and reliable product quality.Our products have passed ISO certification and hold multiple patent certificates. We have a professional research and development team and a strong after-sales service team to provide customized solutions to customers. At the same time, we also have rich experience in OEM and ODM. From the design and production of product solutions, to transportation, installation and debugging, and after-sales service, we have sound and continuous service plans. Based on the business philosophy of "service first, quality first", we are committed to providing professional solutions for partners in the plant protection industry and creating a perfect supply chain for plant protection products.Our products are popular in China and exported to various parts of the world, including the United States, Russia, Mexico, Brazil, Ecuador, Argentina, Portugal, Turkey, Peru, and many European countries. We have distributors and agents in many European countries. Our product quality and service have been recognized by customers.
We have established long-term cooperation relationships with suppliers, enjoying absolute advantages in terms of price and delivery.
We can provide you with unique products that are not only attractive but also practical and competitive.
Welcome more partners to join us!
FAQ
Drone FAQ1.What is the best price for your product?
We will quote according to your order quantity, the more quantity, the higher discount.
2.What is the minimum order quantity?
Our minimum order quantity is 1 piece, of course there is no quantity limit.
3. How long is the delivery time for the products?
According to the dispatch of the production order, it is usually 7-20 days.
4. What is your payment method?
50% deposit before production, 50% balance before delivery.
5. How do you export?
At present, we mostly use grey customs to export.
6.What is your warranty period? How long is the warranty period?
Generally speaking, the frame and software of the drone are guaranteed for 1 year, and the wearing parts are guaranteed for 3 months.
7.What is the monthly production?
One month's production is 200-300 flights.
8.What is the capacity of the drone?
UAV models are divided into two categories: agricultural plant protection UAVs and transport UAVs;Among them: agricultural plant protection UAV capacity and load respectively:

SDX410	10L liquid capacity/20L solid spreading 10kg load model
SDX420	20L liquid capacity/30L solid spreading 20kg load model
SDX430/SDX630	30L Liquid Capacity/40L Solids Spreading 30kg Load Capacity Model
SDX440/SDX640	40L liquid capacity/50L solids spreading 40kg payload model
SDX450	liquid capacity 50kg load capacity model
Among them: transport drones capacity and load respectively:
SDT410/SDT610	10kg load models
SDT620	20kg load model
SD-T440	40kg load model
SD-T650	50kg load model

9. Can you sell parts and accessories separately?
Drone parts and accessories can be sold separately, for example, an X450 model can be divided into several parts as follows:

No	product name	descriptions
1	rackmount	X4-50 Rack
2	flight control	k++ v2
3	telecontrol	H12 remote controls
4	electrical machinery	X13 electrical machinery with paddle
5	printheads	18S centrifugal nozzle
6	water storage	18S 8L water storage
8	batteries	18S 30000mAH
9	battery level	18S UD4 battery level
10	flowmeter	flowmeter
11	radar	Ground defence radar (optional)
12	radar	Obstacle avoidance radar (optional)
13	can	CAN HUB

10. what comes standard with drones in general?
Standard equipment:
Complete drone (1 set), batteries (1 or 2 depending on model), remote control (1), charger (1), centrifugal nozzles (2 or 4 depending on model), flow sensors (1 or 2 depending on model), sprinkler pump (1 or 2 depending on model).
Options
Ground defence radar, obstacle avoidance radar, CANHUB module (mandatory for radar selection).
11.How much area can be covered by a fully loaded battery?
The operating efficiency of the drone: is 150-200 acres/hour.
1 battery full load can cover 30-40 acres of land.
12.How many batteries are the best?
It is best to use 3 batteries, the batteries work for 10 minutes and charge for 15 minutes, 3 batteries can be rotated to form uninterrupted operation.
13. Whether there are physical photos and videos?
According to the customer's needs, we can provide photos and videos of the corresponding models.
14.What is the spraying range of the drone?
More models to determine:
10-30kg loaded model Spraying range is 2-4 metres.
The spraying range is 2-4 metres for 10-30kg loaded models. 40-50kg loaded models The spraying range is 4-6 metres for 40-50kg loaded models.
15.Whether the sprinklers can be replaced with other?
There are currently two types of sprinklers:
Pressure Sprayer
Advantages: Liquid under pressure, strong penetration, resulting in a smaller amount of liquid drift, less evaporation in dry areas
Disadvantages: the liquid atomisation is not uniform, the droplet diameter difference is large, and the nozzle is easy to clog, especially when spraying powder,.
Centrifugal spray nozzle
Advantages: uniform atomisation of the liquid, good atomisation effect, the difference in droplet diameter is not large.
Disadvantages: centrifugal nozzle accessories are prone to problems, brushed motor version of the motor is easy to damage, shorter life, replacement frequency is higher, brushless motor version of the higher cost, and centrifugal nozzle basically no downward pressure, completely by virtue of the drone's wind field downward pressure, compared with the pressure nozzle in terms of the amount of drift is larger, for tall crops and fruit trees, the effect of some of the poor.
