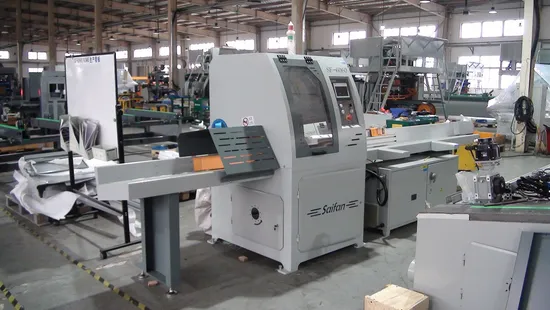

High Quality Optimizing Electric Cross Cut Saw for Pallet Manufacture

Product Description

High Quality Optimizing Electric Cross Cut Saw for Pallet Manufacture
Product Description
Feature
This saw is a cross cut saw, cutting continuously and automatically with high precision and high efficiency. Can pre-set and edit and save cutting plans.
Advantages
Easy to operate, high efficiency, safty for worker

It contains cutting program, input parameters from the Siemens PLC touch screen, have two cutting modes, one is Manual measure mode, measure raw material length by hand then input into machine, and then input max. 8 different cutting length and quantity. Another mode is Auto measure mode, machine will auto measure the raw material length, and can input only 1 length and quantity.
Can automatic show the problem alarm words in screen, and with our operation guidance videos, worker can easily understand the problem and release it.
Product Parameter

NAME	Wood Cross Cut Off Saw
Model	SF6060	SF6061
Cutting length	Max. 2m/ 4m/ 6m
Cutting height	10-120mm	10-140mm
Cutting width	30- 200mm	30-300mm
Cutting section	Max. 120*150mm/100*200mm	Max.140*140mm/140*300mm
Feeding speed	5-30m/min
Cutting speed	40pcs/min	45pcs/min
Blade diameter	450mm*30mm	600mm*30mm
Cutter spindle rotation speed	3000rpm	3150rpm
Servo drive motor power	0.75kw	1kw
Cutting motor power	7,5kw/11HP	11kw/15HP
Total power	8.5kw	12.5kw
Pressing method	Cylinder, air pressure 0.5-0.7Mpa
Cutting tolerance	In +/-1mm
Machine working dimension	L*W*H, 5.4m*1.2m*1.6m/7.4m*1.2m*1.6m/9.4m*1.2m*1.6m
Dust collection port	Dia. 100mm*2pc
Electrical components	Famous brand
PLC Touching screen	Siemens
Voltage	380v, 3 phase, 50Hz Can customize (extra cost $200)

Detailed Photos

Control cabinet	Program
Siemens PLC and touch screen, in 4 languages Chinese English Spanish Russia. Other language is also ok, if you can translate for us.	Measure the raw material length,then can input 8 different size and quantity, or input one size only, machine can work automatically.

Pusher	Feeding table
Servo feeding pusher, material aluminum alloy, reliable andlong life.	2m 4m 6m length for your choice, slanted table thus woodcan align to the fence more easier.

Electric cabinet	Safety cover
Door with safety switch.	Door with safety switch.

Pressing system	Sensors
Pneumatic pressing boards, front side 1pc, top 1pc, rear side 1pc, ensure smooth cutting.	IFM sensors to detect the wood length.

Magnetic start button	separate saw blade station
Can put anywhere of the machine, anywhere convenient tothe operator.	Replace saw blade convenient and safe.

Dust Collection Port	Left feeding
2 pcS 100mm diameter dust collection port, strong ability tooutput the sawdust.	Can make to left feeding.

Related Products

SF7013	Double Heads Notcher
SF7030	Wood Pallet Chamfer Machine
SF7041	Pallet Round Corner Cutter Machine
SF6060	Wood Cross Cut Off Saw
SF6021	Wood Double Heads Trim Saw Machine
SF8005	Multi Heads Trim Saw

Final Product
Company Profile

HICAS group is one leading manufacturing and exporting company of wood working machine in China.
We are committed to provide one-stop service to our customers all over the world.
HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter. 1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box. 3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback
8.Our machines have CE Certification
Packaging & Shipping
1>Packing details: Warrping film with plywood box or as your request.
2>Shipping: We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms.
3>Timely delivery and transportation
After Sales Service
1> We respect your feed back after receiving the goods.
2> Tracing the working condition by email per month.
3> 24 hours technical support by email, call, video.
4> English CD and manual for machine using and maintainance.
5> Whole machine one year warranty.
6> Whole life warranty.
7> Engineers available to serve and train overseas, but your side should pay all the expense.
FAQ
1. Do you offer installation?
Video guidance and English manual can be provided freely, and we provide online support, now all our customers install and operate the machine by themselves with our online support.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.

3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.

4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.

5. Do you have any machines in our country?
Our machines have been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.

6. Can you customized the machine?
Our machines can be customized made according to buyers' request.

7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.

8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish.
