Cbb60 3UF/440VAC Motor Capacitor Function

Product Description

1. General description:
Broadly applied to running of single-phase AC motors at 0Hz(60Hz)frequency for washers and high efficiency compressors of refrigerators etc.
2. features:
The capacitor takes heavy-edge metallized, AI/Zn pp film or web-like fuse metallized PP film as dielectric, its components are assembled in flame-retardant ABS or PBT cylindrical crust, impregnated with flame-retardant epoxy resin, It has high reliability and
stability.
3.Technical parameter
Standard:GB3667-1997,same as IEC60252:193
Climate type:40/70/21, 40/85/21
Capacitance tolerance: ±5%
Dielectric dissipation factor: tg&≤0.002(50Hz~100Hz)
Life expectancy:3000h(Class C)or10000h(Class B)

Capacitance range	1-120μf
Rated voltage Un	250v.ac/400/450V.ac
Rated frequency	50Hz;60Hz
Capacitance tolerance	±5%;±10%
Climatic category	-25+70°C
Dissipation factor(at 50Hz-Hz and 20°C)	≤0.002(100Hz,20°C)
Test voltage between terminals	2×Un for 3s
Test voltage between terminals and case	2×Un+1000VDC FOR 2s
Reference standard	EN 60252-1:2001;IEC252

4.Service condition
Altitude:≤2000m
Residual voltage in application:Less than 10% of rated voltage
Allowed maximum voltage: Less than 1.1 times of rated voltage
Permissible maximum current: Less than 1.3 times of rated current
Outline size

1.0UF/450VAC	30*57
1.5UF/450VAC	30*57
2.5UF/450VAC	30*57
3.0UF/450VAC	30*57
3.5UF/450VAC	30*57
4.5UF/450VAC	30*57
6.0UF/450VAC	30*57
6.3UF/450VAC	35*66
8.0UF/450VAC	35*66
10.0UF/450VAC	35*66
12UF/450VAC	40*71
14UF/450VAC	40*71
16UF/450VAC	40*71
18UF/450VAC	40*71
20UF/450VAC	40*95
25UF/450VAC	40*95
30UF/450VAC	45*95
40UF/450VAC	50*107
50UF/450VAC	50*107
60UF/450VAC	50*117
2UF/450V+CABLE	30*59
4UF/450V + CABLE	30*59
8UF/450V+CABLE	35*69
10UF/450V+CABLE	35*69
12UF/450V+CABLE	40*73
16UF/450V+CABLE	40*73
20UF/450v+cable	40*98
25UF/450V+CABLE	40*98
30UF/450V+CABLE	45*98
40UF/450V+CABLE	50*109
50UF/450V+CABLE	50*109
60UF/450V+CABLE	50*119

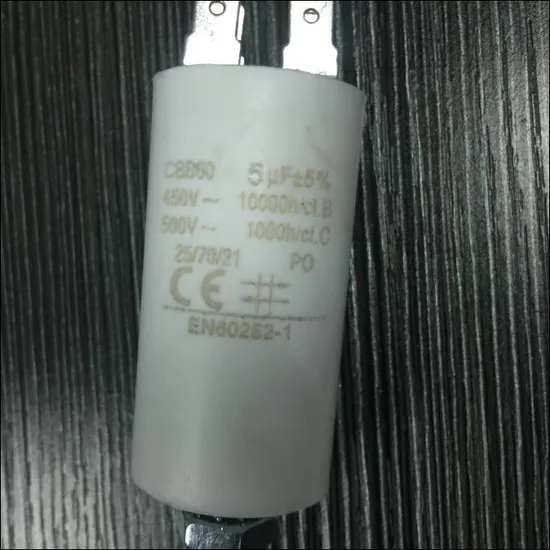

Product Photo:
Application
Factory photos:
Certification:
