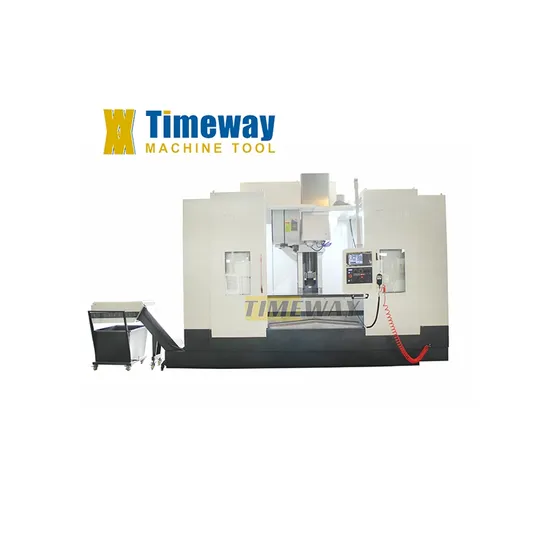

Economical CNC Milling Machine Vertical CNC Machining Center Vmc1690g

Product Description

Vertical Machining Center
Product Description
Applications of the vertical machining center:
The VMC series vertical machining center is a vertical machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise, small batch, and multi-variety parts.
Equipped with 4th axis for machining round pieces.
Equipped with B+C axis cradle type NC rotary table.
Equipped with A+C axis NC rotary table.
Equipped with swivel head (B-axis) + NC rotary table (C-axis). Standard Accessories: FANUC 0i MF CNC system; X/Y: Linear guide rails, Z: Sliding guide rail; Taiwan BT40 spindle, 8000rpm; Taiwan disc-type ATC with 24tools; Full enclosure; Manual pulse generator (MPG); USB & LAN interface; Work lamp; Pilot lamp; Cooling system; Centralized automatic lubrication system; Spindle air blast; Air gun; Milling arbor & chuck; Heat exchanger for electric cabinet; Tools & tool-box; Leveling wedge & bolts;Operation manual (English) Optional Accessories:MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND; 4th axis; Direct driven spindle (10000, 12000, 15000rpm); Circular coolant nozzle; Coolant through spindle (CTS);Spindle oil cooler; Air conditioner; Chain-type chip conveyor; Water gun; Safety door; Tool measurement system; Workpiece measurement systemVMC-1690G

Worktable size (LxW)	mm	1800×900
T-slot (No./width/pitch)	mm	5-22-165
Loading capacity	kg	1600
Longitudinal travel (X)	mm	1600
Cross travel (Y)	mm	900
Vertical travel (Z)	mm	800
Distance from spindle nose to table	mm	160-960
Distance from spindle center to column	mm	960
Spindle taper	-	BT50 (190)
Spindle speed	rpm	6000
X/Y/Z-axis rapid feed speed	m/min	20/20/20
X/Y/Z-axis servo motor (FANUC)	-	β40/β40/β40
X/Y/Z-axis positioning accuracy	mm	±0.003/300
X/Y/Z-axis repositioning accuracy	mm	±0.003/300
Main motor power	kw	18.5/22
Air pressure source	kg/cm2	6/8
Power capacity	Kva	40
Tool magazine capacity	T	24 (Disc)
Guideway type	-	Linear
Machine weight	kg	13000
Machine dimensions (LxWxH)	mm	4300×2920×3710

Detailed Photos

After Sales Service
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the
machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer
(relative cost born by customer). Company Profile
"TIMEWAY MACHINE" is a registered Chinese business business located in Zhengzhou city, in the center of China, and has been opearting in the machinery industry for many years.

Our factory is the joint-stock enterprise, founded in 1946, has 50 years of machine tool manufacturing history.Occupies more than 500acres, built a foundary, machining, heat treatment, assembly, quality inspection, painting, logistics and other advanced production lines.

Our product mainly cover lathes, Milling, Drilling, Gringding, Sawing, Shaping/Slotting and related accessories&tools, etc.
