China Xuzhou Manufacture Hoist Machinery Qy25K Qy25K5d Qy25K5c 25t Truck Crane

Product Description

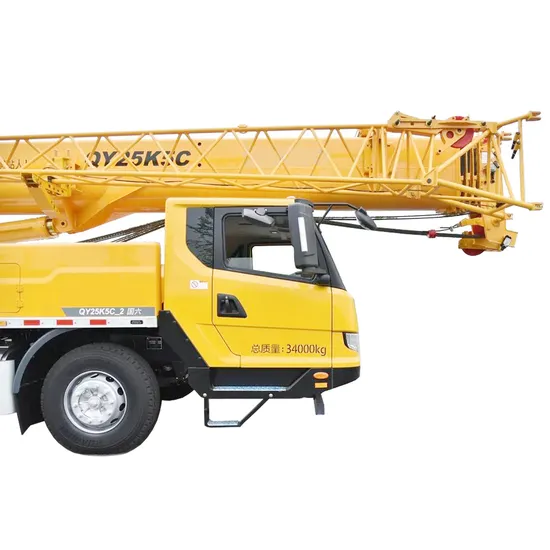

Product Description QY25K truck crane is widely used for the lifting operations in Oilfields, mines, general engineering projects, such as construction site, urban renewal, communication and transportation, sea ports, bridge construction, desert, and complex working environments.

Product Parameters

SPECIFICATION OF QY25K5C QY25K5D TRUCK CRANE 25T
Item	Unit	Parameter Value
Model	-	QY25K5D	QY25K5C
Operation Performance Parameter
Max. lifting capacity	t	25	25
Axle load	kg	7000/13000/13000	8300/12850/12850
Approach angle	°	11	11
Departure angle	°	12	13
Minimum ground clearance	mm	250	250
Fuel consumption for 100km	L	30	30
Engine Parameter
Model	-	SC9DF290Q6/MC07H.29-60	SC9DF290Q6/MC07H.29-60
Engine rated power	kw	213/1900 213/2200	213/1900 213/2200
Emission	-	EU III
Max. output torque	N.m	1250/1200-1500 1200/1200-1600
Dimension Parameter
Crane Full Dimension(L×W×H)	mm	13110*2550*3490	13540*2550*3460
Wheel base	mm	4500+1350	4720+1350
Track	mm	2060/1840/1840	2074/1834/1834
Boom length	mm	10.8	11.15
Speed Parameter
Max. travel speed	km/h	≥80	≥80
Minimum stable running speed	km/h	2.5~3	2.5~3
Max. slewing speed	r/min	≥2.5
Turning radius at turntable tail	mm	3700	3800
