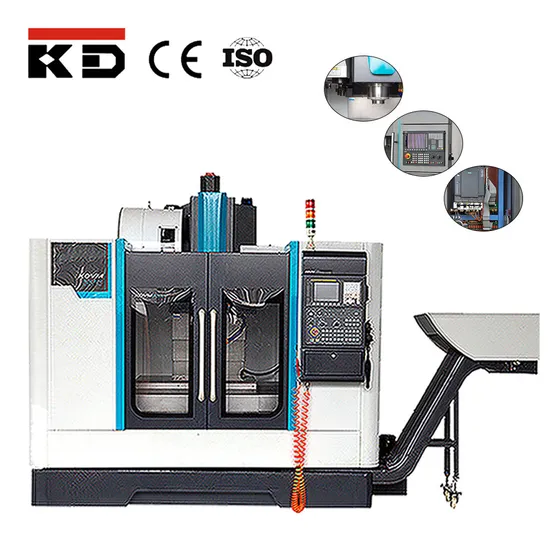

Ce Kdvm800L Standard CNC Milling Machine
| US$28,336.00-37,565.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
KDVM800LA
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
X Travel
800mm
Y Travel
530mm
Z Travel
530mm
Spindle
Bt40
Spindle Speed
8000/10000/12000rpm
Main Motor
7.5/11kw
Travel Speed
24m/Min
Motor Torque
11/11/11nm
Transport Package
Wooden Pallets(Ht)
Specification
800x530x530mm
Trademark
KD
Origin
China
HS Code
8457101000
Production Capacity
523
Product Description
PRODUCT SPECIFICATIONS
| MODELS | DM852 | DM1052 |
| TRAVEL | | |
| X axis | 800mm | 1000mm |
| Y axis | 520mm | |
| Z axis | 520mm | |
| Spindle center to column | 550mm | |
| Spindle end to table | 150-670mm | |
| TABLE | | |
| Table size | 950×510mm | 1130×510mm |
| T-slot(width×number×space) | 18mm×5×100mm | |
| Max. table loading | 800kg | |
| SPINDLE | | |
| Taper bore of spindle | BT40 | |
| Spindle power | 11/15kw (FANUC) | |
| Spindle speed | 8000rpm | |
| FEED | | |
| X/Y/Z fast feed | 30/ 30/ 30m/min | |
| Motor power/torque of X/Y/Z | 3/3/3 kw (20Nm) | |
| Guide ways number of X/Y/Z | 3/3/2 (ball type) | |
| Linear guide width of X/Y/Z | 35/35/35mm | |
| Diameter and screw pitch of X/Y/Z lead screw | Ф40x12mm (C3 level) | |
| Bearing number of X/Y/Z lead screw | 7/7/7 | |
| ATC | | |
| Tool number | 24 | |
| Max. tool length | 300mm | |
| Max. tool weight | 8kg | |
| Time (tool-tool) | 2s | |
| ACCURACY | | |
| Positioning | ≤0.006mm | |
| Repeatability(X/Y/Z)(ISO) | ≤0.004mm | |
| OTHERS | | |
| Pneumatic boosting cylinder | 3.5T | |
| Power of coolant pump | 550w | |
| Capacity of lubrication pump | 2L | |
| Capacity of coolant tank | 200L | |
| Min. Input | 0.001mm | |
| Overall dimension (L x W x H) | 3750x2300x2700mm | 4300x2300x2700mm |
| Net weight | 5150kg | 5480kg |
