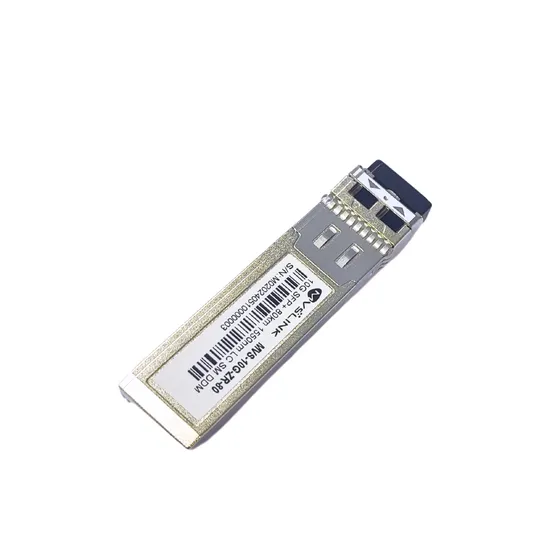

Brocade Compatible 10g Zr 1550nm 80km Ddm FTTH Optical Transceiver 10g Zr SFP Transmitter Optical Module

Product Description

Product Highlights* Compatibility -- Compatible with Cisco, Juniper, Arista, Brocade, Mellanox, HW, Generic, HPE Aruba, Netgear, TP-Link, Linksys, Broadcom, and Other Open Switches.
* MVSLINK 10GBase-SR SFP+ Module - 10Gb/s rate, SMF, duplex LC connector, 1550nm wavelength, up to 80KM.
* Easy to use -- Easy installation, plug and play, fully hot-pluggable with ESD protection. Ideal for data center, 10G Ethernet and Fiber Channel etc.
* Low Power Consumption -- Low power consumption(less than 1.8watt) and low EMI emission design. SFP+ MSA Compliant, CPRI, eCPRI Compliant.
* High Quality -- All of products are manufactured under strict quality control system, every module has been tested one by one on different switches before shipping, to ensure compatibility with different brand of switch.
* After-sales Service -- 30 days Free-Returned, 3 years Free Warranty and lifetime technology support, please contact us, any product quality and compatibility issues.
Product Description Brocade Compatible 10g Zr 1550nm 80km Ddm FTTH Optical Transceiver 10g Zr SFP Transmitter Module
MVSLINK SFP-10G-ZR Compatible SFP+ transceiver supports up to 80km over OS2 SMF via an LC duplex connector. This transceiver is compliant with per the RoHS Directive 2011/65/EU. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, 10G Ethernet and Fiber Channel etc.
MVSLINK 10G SFP+ ZR transceiver comes with an Industry Leading Lifetime Warranty, surpassing the OEM warranty for the same product. Every SFP+ ZR transceiver is environmentally tested in its specific port/platform, which includes compliance verification for distance, wavelength, traffic density and light.
MVSLINK's product solutions provide power-efficient connectivity enabling higher port bandwidth, density, and configurability at a low cost and reduced power requirement in the data centers.
Product Details

Compatible	Cisco, Juniper, Arista, Brocade, Mellanox, HW, Generic, HPE Aruba, Netgear, TP-Link, Linksys, Broadcom, etc.
Module	OFSF10G80x-F55	Vendor Name	Mvslink
Form Factor	SFP+	Max Data Rate	11.3gbps
Wavelength	1550nm	Max Cable Distance	80km
Connector	Duplex LC	Media	SMF
TX Power	0~5dBm	Receiver Sensitivity	< -23dBm
DOM	Supported	Commercial Temperature Range	0 to 70°C (32 to 158°F)
Protocols	SFP+ MSA Compliant, CPRI, eCPRI	Warranty	3 Years
Core Size	9/125µm	Modulation	NRZ

Quality AssuranceCompatibility Testing
Our R&D team consists of experts with years of experience in the optical communications industry. Our manufacturers are top-class in the industry and support a product OEM. Installing a third-party transceiver does not affect your network equipment warranty.100% Third Party Compatible
Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations. Prior to shipment, we meticulously code our optical modules and DAC/AOC cables, followed by rigorous testing on the corresponding switches to guarantee 100% compatibility with your system.
MVSLINK follows the principle of quality first. We strictly control the quality of our products and comply with certification and safety standards. Currently, our products comply with industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, UKCA, and so on. To get the detailed certification, please contact us.Connectivity Solutions
Product Parameters
Production Workshop
Custom Coding & Manufacturing for Your Optical Modules.Expert optical module makers offering OEM branding & customized coding. Stand out with our reliable, personalized solutions!
Packaging & Shipping
Product Features
* Up to 11.1Gbps Data Links
* Up to 80km transmission on SMF
* EML Laser and APD receiver
* Metal enclosure, for lower EMI
* 2-wire interface with integrated Digital Diagnostic monitoring
* Hot-pluggable SFP+ footprint
* Specifications compliant with SFF 8472
* Compliant with SFP+ MSA with LC connector
* Single 3.3V power supply
* Power dissipation < 1.8 W
* Case operating temperature
Commercial: 0°C to +70°C
Industrial: -40°C to +85°C
Applications
* Switch to Switch Interface
* 10GBASE-LR/LW & 10G Ethernet
* Switched Backplane Applications
* Router/Server Interface
* Other Optical Links
Company Profile About Suzhou Weimei Electronic Technology Co., Ltd
Mvslink was established in 2012, headquartered in Suzhou, with research and development laboratories in Shanghai, a production factory in Suzhou, and a sales office in South Korea.
Focus on the rapidly growing markets of cloud computing data centers, telecommunications, and 5G wireless, as well as consumer AOC products. Committed to building a semiconductor optoelectronic integration platform and aiming to become a leading brand in the global optoelectronics field.
FAQQ: What kind of polish should be LC duplex connector for SFP-10GZR-55-I : PC (blue) or APC (green)
A: You can use OS2 duplex LC UPC cables.
Q: Is it necessary to clean a transceiver's optical connector? How to clean the 10G ZR transceivers?
A: Dust and contamination can accumulate on transceiver's connectors and cause problems such as reducing the optic launch power. To ensure better connection, MVSLINK strongly recommends cleaning both connectors each time you disconnect and reconnect them.
Q: Once I place an order for my transceivers, how long will it take to receive them?
A: As long as the products you order are all in stock, we will ship them out the same day you place your order. As for some specific products or products that have a short stock, we will keep you informed ahead of time before you place your order.
Q: Can l get a sample first?
A: We do offer samples before making any production so that the production is up to the buyer's expectation. Samples can be delivered within 5-8 days.
Q: What is your MOQ?
A: 1 piece is available. We can also provide free samples for our valued customers.
Q: How much will the shipping charges be?
A: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested. If you have another question, please contact us.
Q: How to place an order?
A: Please contact our sales representative or send us an inquiry, and we will contact you within 12 hours.
