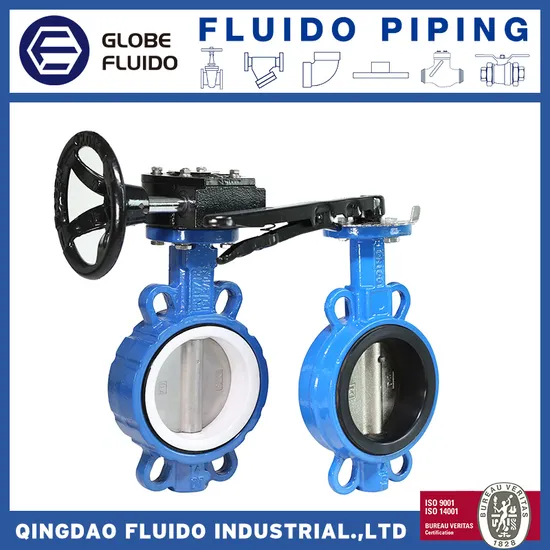

Cast Iron Wafer Type Butterfly Valve Price

Product Description

Wafer Type Butterfly Valve Price

Item	Butterfly valve
Technical data	Size		DN40-DN1200
	General Design		API609
	Mounting Pad		ISO 5211
	Face to face dimension		API609 EN558-1-20series
	Flange drilling		DIN2501 PN10/PN16
	Inspection and Test		API598
-All available General Design and Face to face dimension kindly refer to the basic specification of qingdao fluido. -All available Flange drilling kindly refer to the attached flange drilling dimensions.
Product Features	-Wafer,lug or U type flanged body style fit between FF or RF flanges
	-PTFE bushing ensure the maximum shaft support and centralized alignment
	-360ºC polished disc assures positive on-off
	-Hard-backed cartridge seat or rubber boot seat
	-One piece shaft,double piece shaft,pinned or pinless disc
	-Universal ISO5211 mounting Pad
Material list	Body	Cast Iron A126 CLASSE B; Ductile iron GGG40/GGG50
	Bushing	PTFE
	O ring	EPDM
	Shaft	Stainless steel AISI316
	Disc	Stainless steel A351 CF8M
	Seat	EPDM
	Pin	Stainless steel AISI316
Actuator
Coating	A	Fusion Bonded Epoxy powder coated
	B	Spray Painting

Butterfly valve fields of application
-water systems such as water treatment plants, distribution networks, potable water applications; -Sewage systems such as sewage treatment plants, raw water, digested sewage,air applications ; -Industrial systems such as chemical contaminated waste water, gases, industrial media
-Food & Beverage systems such as washing and rinsing applications, conveying systems, potable water processing.

INSPECTION:
PACKAGE: 6.Why Choose us?
1)Industry leader:Qingdao Fluido Industrial Co.,Ltd has been specilized in Pipeline Products since 2004.With decades of development, Qingdao Fluido Industrial Co.,Ltd possesses 20 engineers, 200 experienced workers and 25 professional sales team and has supplied pipeline products, solution and services to over 30 countries.Quality is strictly Controlled and gauranteed.
2)Large Productivity Qingdao Fluido Industrial Co.,Ltd' productivity is large and stock for some of the pipe fittings is also available. so the mass production lead time is short.3)VIP ServiceProfessional Technical engineers and sales teams gaurantee the quality and service.
4)OEM is also available
7.FAQ:
Q1:What certificate do you have?A: We have ISO 9001, CE certificate.
Q2. Can I get free samples?A: Yes, The free samples can be offered for free.Q3. Can I have my own Logo on the product?A: Yes, Simple logo design is available based on not small order quantity.
Q4: Can I have my own customized product?A: Yes, your customized requirements for color, size, mark, etc.
Q5: Can you produce the products according to my own drawing?A: Yes, we can produce the products according to your drawing.
Q6: How long is your delivery time?A: Generally it is about 30-45days depends on the order quantity.
Q7:What's your product range?A:QINGDAO FLUIDO INDUSTRIAL Co., Ltd is a leading manufacturer and exporter of various iron and steel valves, fittings and flanges. Its main products include: Valves: Cast iron/Ductile iron/Cast steel valves (DIN3352 Resilient seated F4/F5 Gate valves, DIN3352 F4/F5 metal seated Gate valves, BS5163/BS5150/AWWA C509 Gate valves, API600 Gate valves, Cast iron butterfly valves, DIN/ANSI Globe valves, Wafer/swing check valves and Y-strainers. Pipe fittings: Butt Welding Pipe Fittings, high pressure pipe fittings, stainless steel screw fittings, pipe nipples and coupling. Flanges: Flat flanges, welding neck flanges, slip on flanges and blind flanges. We have passed not only the European CE certification for our valves and flanges, but also the ISO9001 assessment and registration by SGS for quality management. By virtue of 20+ years′ business accumulation in more than 35 countries/regions, FLUIDO has been receiving worldwide attentions. "Trust from quality", with years of industrial experience, mature quality control, stable business operation processes, and a continuously developing ideas, FLUIDO is your best partner. Welcome to contact us, and we are committed to meeting all of your needs!
