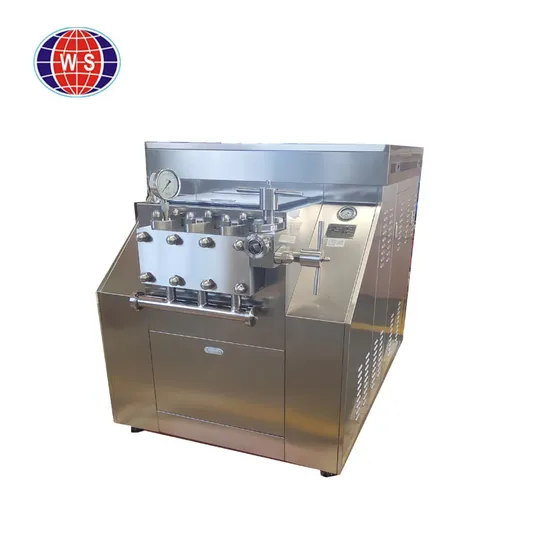

Milk Juice Coconut Milk High Pressure Homogenizer
| US$3,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WS
Application Area
Food
Certification
CE, ISO
Condition
New
Mixing Drum Shape
Drum
Stirring Type
Spiral
Type
Pressure Homogenizer
Working
High Speed Mixer
Name
High Pressure Homogenizer
Voltage
380/220
Power
5kw
Dimension(L*W*H)
1250*950*1200mm
Material
Stainless Steel 304
Flow
500-6000 L/H
Max Pressure
120MPa
Function
Homogenzing
Mixer Type
Homogenizer
Layout Type
Horizontal
Operating type
Continuous Operating
Specification
300L/H to 30000L/H
Trademark
WS
Origin
Shanghai, China(Mainland)
Production Capacity
200set/Year
Product Description
A. power endmotor: Siemens Bede Motor Co., Ltd.
Drive: two-stage variable speed; one-stage belt pulley, two-stage crank gear symmetrical transmission; special alloy bearing bush, double-sided rolling bearing, horizontal stability, low noise, and mechanical efficiency increased by about 10% on average.
Lubrication: splash type automatic lubrication and oil
B.Hydraulic end
The main pump body: three types, the gland adopts radial self-sealing, durable, no leakage.
Plunger: 3 plungers, durable, safe and easy to disassemble. Square plunger seal assembly, code X4310.
(Replacement of seal does not require unloading of pump body)
One-way valve: 3 sets of cone valve in and out, 6 sets in total. Durable and reliable, ensure flow rate ≥ rated flow value.
| model | 3000-25mpa |
| (50Hz)rated flow rate 50Hz power | 3000l/h |
| ()max work pressure(test pressure) | 25MPa |
| rated work pressure | ≤20MPa |
| material in pressure | 0.2-0.3MPa |
| Liquid temperature / viscosity | 100ºC/≤1000CP |
| rated motor pwoer | 22KW |
| Interface diameter | material in - out tube fittingRD70*1/6" |
| size | 1.35*0.94*1.24m |
| weight | 1200KG |
| lubricate oil | N68or Mobil SHC626 |
