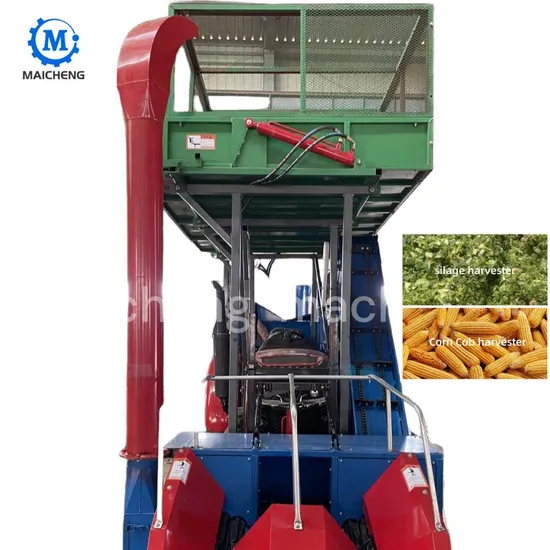

Corn Picker and Stem Silage Harvester Corn Forage Harvester Machine

Product Description

Corn Harvester Description
Corn harvester mainly consists of a picking platform, a chopper, an elevator, a peeling device, a cab, an electrical system, a walking chassis, an engine, a fruit box, a hydraulic system, etc. This machine is mainly used for corn ear picking, peeling, packing, and field transportation. It has the characteristics of reasonable structure, small turning radius, easy operation, durability, safety, easy maintenance, and good driver visibility, which can effectively reduce the labor intensity of the machine and improve labor productivity.
Working Principle
During the walking operation of the corn harvester, the corn stalks are guided into the ear picking guide groove by the pulling chain and the pulling device. After being pulled into the ear picking roller by the pulling chain, the stalks are grasped by the relatively rotating ear picking rod, and the ears are pulled down by the squeezing effect of the ear picking roller. The picked fruit ears are transported to the peeling machine by the elevator, and after peeling, they fall into the ear box. The fully loaded ear box is controlled by a hydraulic device to flip over at a certain angle, and the ears are directly unloaded into the transport vehicle.
Corn Harvester Application
Harvest finished products

Advantages of Corn Harvester
1.An anti-grazing device is added on the right side of the reel to improve work efficiency;
2.The axial flow drum shaft tube is thickened to φ68, the diameter of the shaft head is thickened to φ50, and the material is changed to 42CrMo, which greatly improves the working strength;
3.The engine power is increased to 200 horsepower, and the frequency conversion function is added;
4.The power output connecting belt, walking belt and threshing drum belt all adopt red label belt, which increases the service life, reduces the replacement cycle, and is economical and efficient;
5.The power output pulley is changed from φ248 to φ272, and the walking speed is increased by 10%;
6.Improve the strength of the hydraulic main clutch tensioning arm, increase the fork and adjusting screw from 12mm to 16mm, improve the strength, prevent deformation, and greatly improve the product life;
7.The chassis adopts 16mn high-strength steel, and the reinforcing plate is lengthened, which greatly improves the service life of the whole machine;
8.The intermediate shaft adopts 42CrMo solid shaft and is thickened, the bearing is upgraded from 209 to 210, the strength is increased by 25%, and the reliability of the whole machine is improved;
9.Peel maintenance-free bearings are used in the intermediate shaft, drum shaft, fan, active and passive shafts of the bridge and other parts to reduce the maintenance time of users.
Technical data

Productivity	3-5 acres per hour
Loss rate	≤ 2%
Spindle speed	1600 revolutions per minute
Supporting power	single cylinder diesel engine with 50HP
Dimensions	1250*1475*950mm
Weight	1420Kg
Harvest height	650mm
Cut length	30mm-80mm
Leave stubble height	<80mm
Grain storage bin with a capacity	1m ³
Height of unloading grain	2100mm
Walking speed	4.3Km/h
Straw crushing rate	≥ 98%

Production Workshop

Packaging & Shipping
FAQ
1.Can we visit your factory?
Sure.We are in Zhengzhou,Henan Province,China.For overseas clients can fly to Xinzheng International Airport.We can pick you up in the Airport.Or Zhengzhou East Railway Station. We warmly welcome you come to visit our factory.Online video visiting is also welcome.
2.How can we get the exact price?
Contact us and tell what is your raw material and request capacity,we will recommend suitable machine and price.
3.How do you control your quality?
We have passed CE certification,ISO certification.All of our products are 100% inspected and test before shipment.
4.What is the lead time?
For customized machine,it takes about 15 days after deposit.For stock machine,in 3 days.
we will tell exact time customers before order.
5.How about your after-sale service?
We offer manual instruction and engineer training before loading,after shipment we provide 24hours online support,video technical support,field installation assist,remote debugging.
If clients need,we could provide engineers for on site service until the customer can independently running the machines.
6.What is the warranty period for your machine?
12 months warranty.Long term offer spare parts at cost price.
