Professional Speaker PRO Audio Touring Line Array System PA Speaker

Product Description

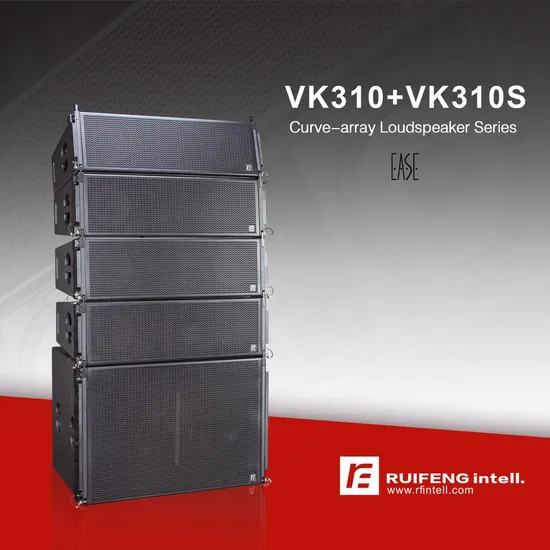

Product name: Pro Audio Speaker PA Neodymium Audio Speaker Three-Way Large Touring Performance Line Array System PA Speaker
Professional audio system factory since 1993,products include,line array speaker, amplifier,full range speaker,monitor speaker,processor, wireless microphone, mixer.
Specification
line Array Full Range Speaker

Frequency response	55Hz~18kHz (±3dB) 45Hz~20kHz (-10dB)
Sensitivity( 1W/1m )	HF:112dB MF:105dB LF:103dB
Nominal Impedance	HF:16Ω MF:16Ω LF:16Ω
Power rating( AES )	HF:70W MF:130W LF:700W
LF Unit	2×10"(75mm voice coil)
MF Unit	1×8"(50mm voice coil)
HF Unit	1×2.55"(1.4"horn)neodymium driver (65mm voice coil)
Dispersion(HxV)	90°x10°
SPL(continue/peak)	HF:130dB/136dB MF:126dB/132dB LF:130dB/136dB
Connection	2 Neutrik NL8MPR connectors
Dimension(H×W×D)	307×930×498.5mm
Net Weight	36( kg )

Subwoofer

Frequency response	38Hz~100Hz(+3dB) 25Hz~150Hz(-10dB)
Sensitivity( 1W/1m )	100dB
Nominal Impedance	8Ω
Power rating( AES )	1200W
LF Unit	2×15"(75mm voice coil)
SPL(continue/peak)	130dB/136dB
Connection	2 Neutrik NL4MP connectors
Dimension(H×W×D)	642.5×930×600mm
Net Weight	62( kg )

Company Certification
Application
Stadium,Theatre,Auditorium,Banquet hall,Multi-function hall,Touring,Portable application
Features
1.VK310 is a dual 10" three-way tri-amp compact line array speaker, adopts premium high-efficiency light weight neodymium speaker unit;The low frequency unit use 2 symmetrically placed 10" rubber edge unit,to ensure the low frequency has compact sound and strong impact force; Medium and high frequency with coaxial point source structure design, a 8" MF neodymiumunit drivers the MF horn,1x2.55" neodymium tweeter units and a planar wave converter are installed on the same axis,It has horizontal dispersion of 90 degrees and vertical dispersion of 10 degrees,the angle makes the sound form an ideal linear acoustic wavefront, and the
projection is accurate.
2.VK310 sprayed with polyuea,more sturdy and wearable,can used under all-weathercondition.Confugared with 3 rigging point, 4 handles,make the handling and construction simple and convenient.
Classic Projects
Our Advantages:
1) Audited supplier by SGS international certificate organization
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,SGS,ISO9001,ISO14001,ISO27001,ISO20000-1,ISO18001
4) Monthly Production Capacity: 2000pcs
5) Fast delivery: Get your order when you need it.
6) 5000 square meters workshop, with about 200 workers and 20 professional engineers
7) Professional and Skilled in audio knowledge ---can design complete audio system for you
8) Convenient Transportation: 1 hour to Guangzhou port
9) 24 hours after sales service.
Company and Show
RF held many technical trainings for Customer
PRODUCT TESTING
FAQ:
Q1: How long is the warranty for the speakers?
A1: 1year warranty.
Q2: How about the delivery time?
A2: 3-7days for stock.
10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.
Q3: What kind of payments does RF support?
A3: T/T, Western Union, Cash are accpeted.
Q4: What's the MOQ?
A4: MOQ is 1pcs
Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .
Q6:Can you tell me your main customers?
A6: That's our customers privacy, we should protect their information.
At the same time, please rest assured that your information is also safe here.
Welcome to contact me by filling in "Message" below and click " Send".
