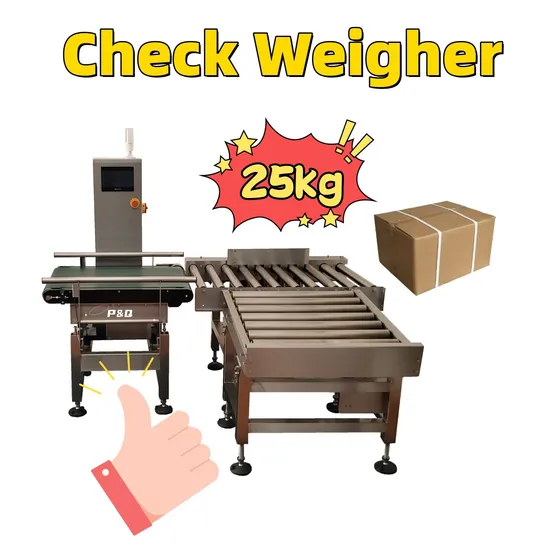

Checkweighers for Large Products / 25kg Cartons / 25kg Bags
Basic Info.
Model NO.
HTCW500
Accuracy
＜±10g
Check Weight Range
>20000g
Application Area
Food & Beverage Industry
Type
Universal Series
Touch Screen
Touch Screen
Sorting Method
Pusher-bar
Frame Material
SS304
Weighing Range
25kg
Minimum Scale
0.001kg
Max Accuracy
±10g
Max Speed
30PCS/Min
Parameter Setting
Auto Setting by Intelligent Product Self-Study
Weighing Belt Width
500mm
Belt Height
650-750mm
Moving Direction
From Left to Right When Facing Touch Screen
Alarm Mode
Sound-Light Alarm
Reject Mode
Roller Push Rod (Optional)
Power
AC220-240V 1phase 750W
Working Environment
Free of Obvious Vibration and Air Flow
Transport Package
Wooden Case for Export
Specification
1610x1600x1720mm
Trademark
P&Q
Origin
China
HS Code
8423209000
Production Capacity
1, 000pieces/Year
Packaging & Delivery
Package Size
180.00cm * 180.00cm * 200.00cm
Package Gross Weight
400.000kg
Product Description
CW series checkweighers are specifically designed for high demand of weighing accuracy, stability and intelligent operation with core invention patents. Imported well-known brand components and integrated circuits are selected, high-precision CNC structure design is adopted, and advanced technologies such as patented weighing algorithms are used to achieve industry-leading detection performance.
MAIN COMPONENTS
| NO. | ITEM | NOTE | BRAND ORIGIN |
| 1 | Load Cell | HBM | Germany |
| 2 | VFD | Danfoss | Denmark |
| 3 | Bearing | NTN | Japan |
| 4 | Timing Belt | Gates | USA |
| 5 | Touch Screen | 7" | China |
TECHNICAL FEATURES
1. Ultra-high-speed load cell from Germany with excellent frequency response.
2. FPGA hardware filter with intelligent algorithm, excellent weighing processing speed.
3. Intelligent self-learning technology, automatic setting of weighing parameters, easy to use.
4. Ultra-fast dynamic weight tracking and automatic compensation technology can effectively improve the detection stability.
5. Friendly operation interface on touch screen, easy to operate.
6. 40 product presets, easy to edit and switch.
7. Large-capacity sorting log, with data output traceability function.
8. CNC machining of structural components with excellent dynamic stability.
9. High quality SS304 frame, strong and durable;
10. Optional function such as RS232 interface,USB interface,Ethernet interface,printer, waterproof etc.
TECHNICAL SPECIFICATIONS
| NO. | ITEM | NOTE |
| 1 | Frame Material | SS304 |
| 2 | Weighing Range | 25kg |
| 3 | Minimum Scale | 0.001kg |
| 4 | Max Accuracy | ±10g |
| 5 | Max Speed | 30pcs/min |
| 6 | Parameter Setting | auto setting by intelligent product self-study |
| 7 | Weighing Belt Width | 500mm |
| 8 | Weighing Belt Length | 800mm |
| 9 | Belt Height | 650-750mm |
| 10 | Moving Direction | From left to right when facing touch screen |
| 11 | Alarm Mode | sound-light alarm |
| 12 | Reject Mode | Roller push rod (optional) |
| 13 | Power | AC220-240V 1Phase 750W |
| 14 | Working Environment | Free of obvious vibration and air flow |
DIMENSIONAL DRAWING
From Left to Right (facing the screen)
From Right to Left (facing the screen)
APPLICATION
MACHINE PICTURES
