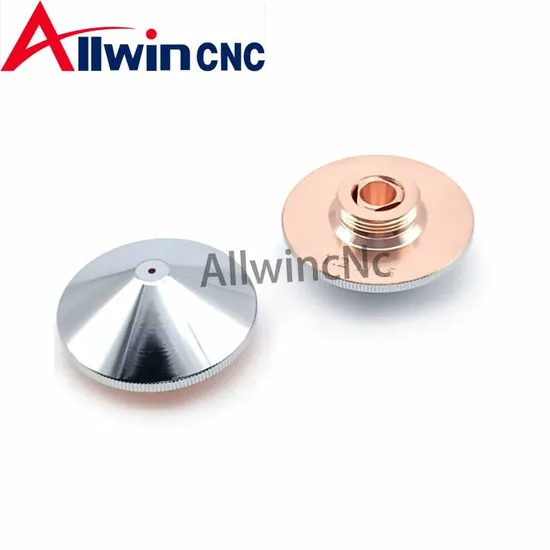

Single/Double Layer Laser Nozzle for Fiber Laser Cutting Engraving Machine 4.0/4.5mm

Product Description

Product Description
What is Single layer nozzle and double layer nozzle?
The Laser Cutting Machine Single Layer Nozzle is a key component used in laser cutting machines. It is designed to control the airflow and assist in the delivery of cutting gases to the workpiece during the cutting process.
This single nozzle is made with high-quality materials, ensuring durability and improved cutting performance.
It finds applications in various industries, including metal fabrication, signage manufacturing, automotive, and aerospace engineering.

The Laser Cutting Machine Double Layer Nozzle is designed to facilitate the delivery of cutting gases while providing efficient protection to the laser cutting lens.
This fiber laser double-layer nozzle features an inner layer for gas flow and an outer layer that acts as a shield, preventing debris and molten material from damaging the lens.
It is widely used in industries such as metal fabrication, automotive manufacturing, and aerospace engineering.
What is the difference between single layer nozzle and double layer nozzle? In the cutting of stainless steel and aluminum plate sheet, while auxiliary gas is Nitrogen, the single layer nozzle is used. And the usual nozzle with diameter is 1.0-3.0mm.
The double-layer laser nozzle is generally used for oxidative cutting. While oxygen is used as an auxiliary gas, to cut carbon steel. and the double-layer laser nozzle with a specification of 1.5-3.0mm.
The lifespan of a laser nozzle
The lifespan of a laser nozzle can vary depending on several factors, including the type of material being processed, the power and intensity of the laser, and the operating conditions. However, with proper care and maintenance, a laser nozzle can have a relatively long lifespan.
One of the primary factors affecting the nozzle lifespan is the material being processed. Different materials have distinct properties that can impact the wear and tear on the nozzle. For example, abrasive materials such as metals or composites can cause more rapid wear compared to non-abrasive materials like plastics. Continuous exposure to high temperatures and molten material during laser cutting or welding processes can also contribute to nozzle degradation over time.
The power and intensity of the laser beam are crucial factors as well. Higher-powered lasers generate more thermal energy, which can accelerate nozzle deterioration. It is important to select a nozzle that is suitable for the specific laser power and intensity to ensure optimal performance and longevity.
Proper maintenance and cleaning also play a significant role in extending the nozzle lifespan. Regular inspection and cleaning of the nozzle, removal of debris or spatter, and replacing worn or damaged parts can help maintain the nozzle's performance and prevent premature failure. Following manufacturer guidelines and recommendations for maintenance procedures is essential.
Additionally, the operating conditions, such as the cutting speed, assist gas pressure, and standoff distance, can impact the nozzle's lifespan.
In general, a laser nozzle can have a service life ranging from several hundred to several thousand hours of operation. However, it is important to monitor the nozzle's condition regularly and replace it when signs of wear or deterioration become noticeable. By adhering to proper maintenance practices and operating within the recommended parameters, the lifespan of a laser nozzle can be maximized, ensuring consistent performance and productivity.
Detailed Photos
Product Parameters

Name	Laser nozzle (dish nozzle)
Type	Single Layer / Double Layer
Diameter	32mm
Height	15mm
Thread	14mm
Caliber(mm)	0.8/1.0/1.2/1.5/2.0/2.5/3.0/3.5/4.0/4.5/5
Material	Imported copper
Corrosion resistance	Yes
Optional	Chromed
Compatible With Raytools/Ralfer Laser Cutting Head (BT240S BM109 BM110 BM111 BM114S)

Type	Outside Diameter	Height	Single/Double Layer	Chrome	Thread	Caliber
D28H15	28	15	Single	No	M11	1.0-4.0
	28	15	Double	No	M11	1.0-4.0
	28	15	Double	Yes	M11	1.0-4.0
	28	15	Double	Yes	M11	1.0-3.0
D32H15	32	15	Single	No	M14	1.0-3.5
	32	15	Double	No	M14	1.0-3.5
	32	15	Double	Yes	M14	1.0-3.5
