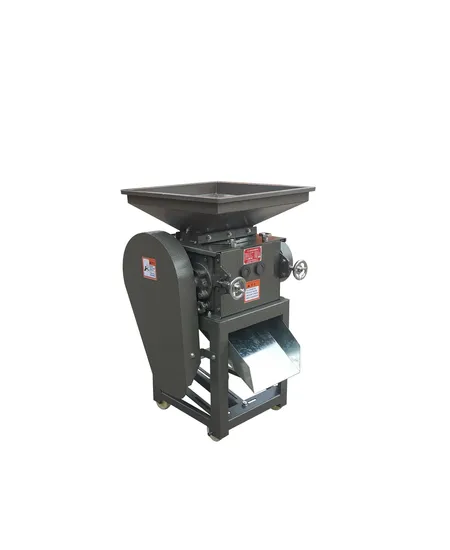

Less Corn Flour Crusher Breaking Machine Grinding and Granulate Machine Maize Breaker

Product Description

Researchers have studied that the feed-to-meat ratio of broken-grain corn is significantly better than crushed corn in ruminant farming. Because there are too many fine materials in the crushed corn, it is not conducive to the rumen rumination and absorption of animals, and the growth of fat is slow, which is prone to rumen accumulation and diarrhea, and even increases the risk of rumen acidosis. The PL300 corn grain breaker produced by our company controls the gap between the rollers to break the corn grains. Under the action of squeezing, shearing and tearing of the rollers, the corn grains achieve the ideal crushing effect, reduce the production of powdery materials and improve the feed conversion rate.

technical parameters
machine model	PL300/B/C/D	Machine power	3.0kw single-phase /4.0kw three-phase 4-pole motor
	390 r/min	production efficiency	1000kg-1500kg/h
Crushing chamber width	300mm	Crushing roll size	140*300 mm
Effective gap between two rollers	1-3mm	Feed size	≤10mm
Maize moisture content	<5%	flour yield	<5%

The PL300 series corn crusher developed by our company is a small feed processing equipment with independent intellectual property rights, and does not refer to any national standards. It is suitable for the majority of small-scale sheep or chicken users, not for the professional feed processing industry.
The two core parts of the machine are 45 # carbon steel seamless pipe processing, frequency-modulated quenching heat treatment process. The two rollers can be exchanged and can be reversed. Due to the difference in speed between the main roller and the auxiliary roller, the wear of the main roller is less than that of the auxiliary roller, and the tooth edge of the auxiliary roller determines the grain breaking effect. Therefore, when the tooth edge of one side of the auxiliary roller is seriously worn, the other side can be turned around and the main roller can not be adjusted. When the teeth of both sides of the auxiliary roller can not be completely used, the new roller should be replaced, and the main roller can be adjusted. In other words, the life of one main roller can be matched with the use of two auxiliary rollers.
