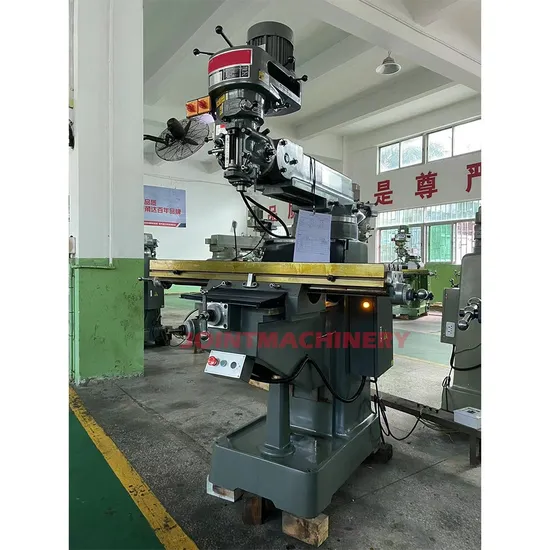

Heavy Duty Vertical Milling Machine 3 Axis Milling Machine with Dro Optional

Product Description

√ Suitbale for household and daily necessities mold processing.
√ Excellent accessories, strict quality control, long durability.
√ Hard-grinding guide way, thick machine body, effctive casting, the whole machine is durable.
√ Milling head key parts from Taiwan, bearings from Chinese famous brand.
√ High efficiency, strong cutting machine performance.
WOKRTABLE Ultra-audio quenching, precision grinding and scraping guide. Rotary table is optional.
TURRET MILLING HEAD Turret milling head can swivel 45° (forward-backward), rotate 90° (left-right). Easy to mill at special angle.
SPINDLE High precision R8/NT30/NT40 spindle, spindle runout:0.003mm
X/Y/Z AUTO FEED X/Y axis auto feed, Z axis electric lifting, improve machining efficiency.
DRO Based on customer needs, optional 2-axis DRO or 3-axis DRO.

Heavy Duty Vertical Milling Machine 3 Axis Milling Machine with DRO Optional

Item		Unit	4VA
Table size		mm	1270*254*90
Travel	Longitude(X)	mm	900
	Crossward(Y)	mm	405
	Vertical(Z)	mm	350
Travel of spindle quill		mm	127
Max diatance from the spindle nose to table		mm	450
Spindle	Rotation speed (Step speed milling head)	50HZ rpm	66-4540
	Rotation speed (Step speed milling head)	60HZ rpm	80-5440
	Taper	-	R8(NT30)
	Rated power	HP	3HP
Tilt angle	Forward and Backward	°	±45°
	Left and Right	°	±90°
Dimension		mm	1500*1700*2200
Net weight		kg	1250
