Top Quality Promotional 5 Cubic Meter Vertical Vacuum Cryogenic Liquid Oxygen Storage Tank

Product Description

Product Description
Cryogenic liquid storage tank is a series of products about first/second/third type pressure vessels manufactured by our company, the products strictly in accordance with the TSG21-2016 <Stationary Type Pressure Vessels Safety Technical Supervision Rules>GB/T150-2011<pressure vessels>, GB/T18442-2019<stationary vacuum insulation cryogenic pressure vessel>,design, manufacture, inspect and accept.

Cryogenic liquid storage tanks is for double wall,vertical (horizontal) structure,adopt vacuum powder insulation,with the advantage of compact structure,low daily evaporation rate,small footprint,centralized control,safe,reliable,easy operation and maintenance.
Technical Parameter:

Effective volume (m3)	Working pressure (MPa)	Demension (mm)	weight (Kg)	Working medium	Placement type
5	0.8	2000*2000*5130	3412	liquid oxygen liquid argon liquid nitrogen	vertical or horizontal
10		2100*2100*7170	5378
15		2500*2500*6912	6415
20		2500*2500*8756	8255
30		2900*2900*8870	12899

5	1.6	2000*2000*5130	3945	liquid oxygen liquid argon liquid nitrogen	vertical or horizontal
10		2000*2000*7895	6787
15		2400*2400*7552	8628
20		2400*2400*9371	10744
25		2700*2700*8980	13500

(Specific cryogenic liquid storage with given pressureand effective volume can be manufactured as customer required)

Structural features:
1.Compact structure, cover a small area.
2.Storage tank and supercharger is a closed system, The liquid or gas can be supplied externally without any additional energy, ensure the liquid or gas purity when discharge.
3.With the pressure adjusting device, the user according to the need to adjust the regulator T,You can discharge the required pressure of the liquid,pressure is stable, easy to operate.
4.Tank provided with a tanker filled joints, can shipping liquid to the vaporizers, tankers.
5.Insulation material perlite and sorbent of storage tanks have been special treatment, to make sure the storage tank have more longer vacuum life. At the same time the storage tank with Metal thermocouple regulation,you can measuring the interlining vacuum when needed.
Packaging & Shipping
1.20ft &40ft container
2.Nude packing or Seaworthy packing
3.Customer's Request
Our Services

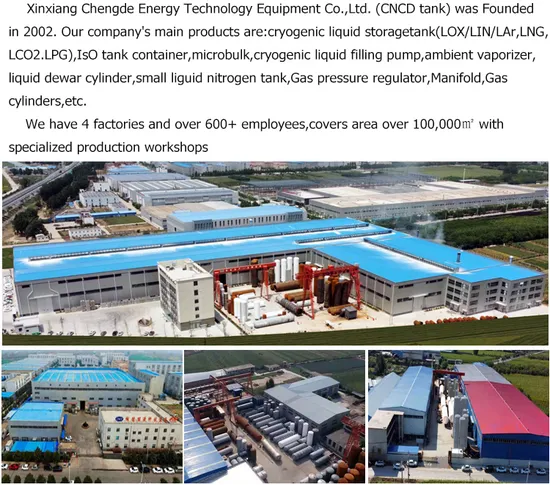

Company Profile
F:Are you a manufacturer or a trading company?
Q:We are a cryogenic liquid storage tank manufacturer, producing industrial gas storage equipment and ancillary products, can provide you with a complete set of gas supply equipment.

F:How about the production scale of your company?
Q:CNCD company was founded in 2002, has a total of 5 subsidiaries, 4 production bases, a total area of more than 160 acres, the production plant of 60,000 square meters, more than 400 employees, has rich experience in design, production and export, products have been exported to 68 countries and regions.

F:Do your products meet international standards? What are the certifications?
Q:Our products are in full compliance with international standards and have been certified and certified by many international standards, including ASME,CE,ISO,CCS,BV, etc.

F:Can you provide drawings before delivery?
Q:Of course, we are always ready to provide you with the drawings of the products you need for confirmation.

F:Can I customize the products I need?
Q:Of course, if you think our regular product model does not meet your needs, you can contact us, we will customize the most suitable for your needs.

F:How to deal with the quality problem of the product after purchase?
Q:Our products are of good quality and usually there won't be any problems. However, in case of product problems, you can immediately contact us, we will provide you with remote guidance and replacement parts or other services.
