5 Axis CNC Router Making Wood Pattern Mold CE Approved

Product Description

Product Description

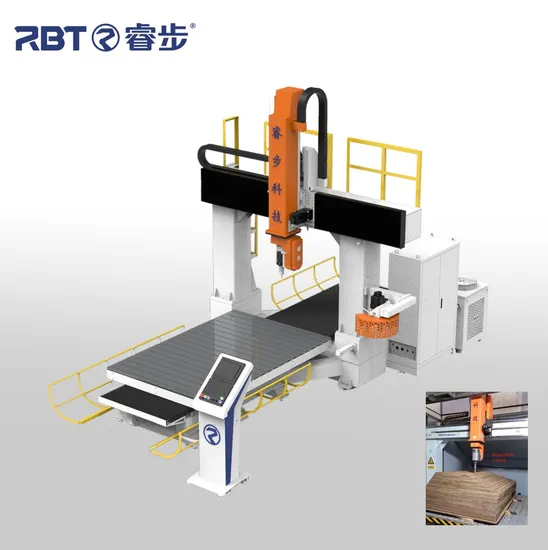

5 axis cnc router making wood pattern mold CE approved
Product Parameters

Machine speed	Fast movement speed /G00	X	35m/min
		Y	35m/min
		Z	20m/min
	Processing speed/G01		0~10m/min
Spindle	Power		5.5KW
	Cooling		water cooling
	RPM		24000RPM
Working travel	X axis		1900mm
	Y axis		3000mm
	Z axis		800mm
	C axis		±540°
	B axis		±130°
Max workpiece	X axis		1400mm
	Y axis		2500mm
	Z axis		550mm
Repeated Positioning Accuracy (within 300mm)	X,Y axis		±0.05mm
	Z axis		±0.05mm
	B,C axis		15 arc seconds
Total power			≈14.5KW
Input voltage			3-380V
Tool holder specification			ER32
Control system			Syntec
Working table			1500*2280mm
Dimension			5100*2610*3982mm
Weight			≈2900kg

Machine details with photos
1. Multi-axis motion: 5-axis CNC routers are able to move tools or workpieces in 5 directions, including three linear axes X, Y, and Z and two rotary axes A and B, providing complex machining capabilities.
2. High-precision machining: Suitable for precision machining of materials such as hardwood, plastic, and metal, especially suitable for making complex wooden molds and patterns.
3. Powerful cutting capabilities: Equipped with high-power spindle motors, it can quickly remove materials while maintaining machining accuracy.
4. User-friendly control system: Usually equipped with easy-to-operate control systems, such as Siemens or Syntec, to support complex design and machining processes.
5. Software support: Compatible with a variety of design and machining software, such as PowerMill, to simplify the conversion process from design to machining.
6. Reduce fixture requirements: Due to the flexibility of 5 axes, the need for complex fixtures can be reduced or eliminated, reducing costs.
7.Improve productivity: By reducing machining steps and increasing material removal speed, 5-axis CNC routers can significantly improve productivity.
8. Enhanced surface treatment: 5-axis CNC routers are able to achieve excellent surface finish on complex geometries.
9. Suitable for large projects: Some 5-axis CNC routers have a large working area, suitable for making large wooden furniture and decorations.
10 .Automatic tool change: Some advanced models are equipped with an automatic tool change system, which can improve processing efficiency and reduce tool change time.
11. Suitable for a variety of materials: In addition to wood, 5-axis CNC routers can also process other materials such as foam and aluminum alloy, which is highly adaptable.
Machine Application
Application of 5 axis cnc router:
The 5-axis CNC router excels in mold making by providing intricate and precise cutting paths for complex geometries. It's ideal for creating detailed molds for industries such as automotive, aerospace, and consumer products. Capable of high-speed, accurate milling of hard woods, metals, and composites, it ensures efficient production of durable, high-quality molds with smooth finishes, reducing manual finishing needs and accelerating the manufacturing process.
Certifications
CE Certificate:
3D laser calibration:
provide 3D laser calibration to ensure the most accurate absolute positioning and repeatability of 5 axis cnc router
Company Profile
Packaging & Shipping
1.Plastic film packaging and put in plywood wooden cases or according to customer's requirements.
2.Shipping : Container transport.
Customer Distribution
FAQ:
Q1. Where is your factory located ? How can I visit it ?
A : Our factory is located in Quanzhou city,Fujian province,China. You can fly to Jinjiang or Xiamen air port, we will pick you up.
Q2. Are you produce the machine according to the customer requirement or samples?
A: Yes,we have a strong and professional R& D team, the machine can be customized based on your products, samples or technical drawings.
Q3. What is your sample service?
A: We can supply the sample testing based on your technical drawing and samples to test the machine performance.
Q4. What is your MOQ of your machine?
A: Normally our MOQ is 1 set.
Q5. Do you test all your machine before delivery?
A: Yes, we have 100% test before delivery.
Q6: How is your development ability?
A: We have a strong and professional engineer team to support the drawing, technology proposal, test and certification; OEM or customized machines are welcomed.
Q7: How about your after sales service?
A:For online services, the supplier will support WeChat/WhatsApp/email or communication software that used by the buyer, including video guidance, video conferencing, etc. If need technology support on site, the supplier will send technician to the buyer's factory for installation, training and after-sales service. The service period is 7 days.
