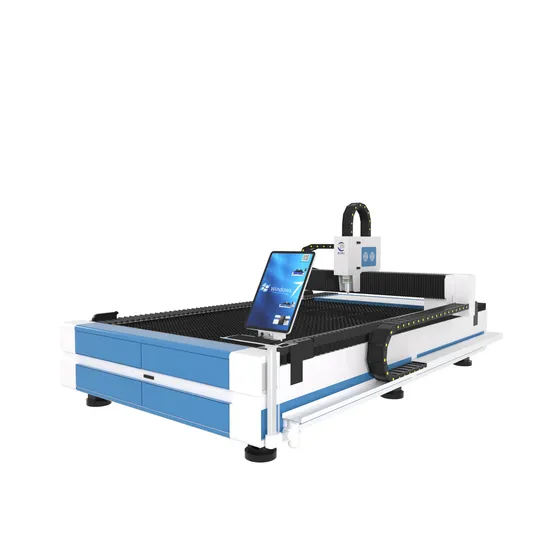

Laser Metal CNC Fiber Laser Cutting Machine for 4000mm*1500mm Working Area

Product Description

Product Description

1. Sturdy frame, self-welding, high temperature annealing and stress relief treatment to prevent deformation
2. Imported original packaged fiber laser, good beam quality
3. Imported high-precision ball screw drive/rack and pinion drive, high-precision linear guide
3. Imported guide drive components and servo motors, high precision, high speed
4. Equipped with automatic lubrication device, dust removal and fume exhaust system in the cutting area
5. High-precision CNC operating system, free design of various texts and graphics for instant cutting
6. Low energy consumption, energy saving and environmental protection, low power consumption
Detailed Photos
Raytools or BOCI laser head
World-class brand, excellent quality. Most popular in the world. Built-in double water cooling structure to ensure constant temperature of collimation and focusing components, avoid lens overheating, and extend lens service life. Protective lens can carefully protect key components.
RAYCUS/MAX laser source
RAYCUS and MAX are the largest laser source manufacturer in China, with high photoelectric conversion rate, high processing precision, good quality, long life, good product performance, and high reputation abroad.

Control system
The intelligent operating system can accurately control the laser power, frequency, cutting speed and other parameters to ensure the stability and consistency of the cutting process; the friendly human-machine interface reduces the requirements on the operator's skill level.
High-rigidity machine bed
Our machine bed is "tempered" at high temperature to remove internal stress in the welding area, prevent deformation and improve toughness. Each cut is accurate and high-quality to meet customers' diverse cutting needs.
Water Chiller
The efficient refrigeration system uses core components from internationally renowned brands, which can effectively reduce the temperature of laser equipment, ensure the normal operation of the equipment, and improve production efficiency
Product Parameters

Name&Model	Laser Cutting Machine G1530F-A
Working Area	1500mm*3000mm
Machine Structure	Stable & strong welded bed with high temperature annealing
Beam	Aviation aluminum/Integrated cast aluminum beam
Moving Speed	120m/min
X axis travel (mm)	1530
Y axis travel (mm)	3050
Z axis travel (mm)	80
Max acceleration	0.8G
Position Accuracy	±0.03mm
Repositioning Accuracy	±0.02mm
Computer	Industry Computer
Transfer method	Gear rack dual drive
Working Voltage	380V,3phase,50hz/60hz(customized)
Dimension	4500*2300*1800

Certifications
Company Profile

Shandong Pengwo Laser Technology Co., Ltd. is located in Dezhou City, Shandong Province, founded in 2005, is a professional engaged in laser processing equipment research and development, manufacturing and to provide customers with laser processing intelligent manufacturing solutions service providers. After years of continuous development and technology accumulation, the company has become a leading domestic supplier of laser application equipment solutions. At present, it has two production bases in Tianquxin District and Pingyuan County, covering an area of more than 80,000 square meters.
The main products of the company are middle and high power laser cutting equipment, laser welding equipment, laser cladding equipment and other laser processing equipment.
After Sales Service
Installation training (3 options) :
A. We will provide installation, operation, maintenance and troubleshooting training videos and user manuals in English, as well as technical guidance via email, fax, phone /Messenger/WhatsApp, etc. if you encounter problems with installation, use or adjustment.
B. You can come to China for training. We will also provide accommodation during the training.
C. China's strong after-sales service team. Our engineers (staff) can speak English to communicate and solve problems. Flights can also be arranged.
Training time: 3-7 working days (recommended).
For installation, commissioning & training (maintenance and operation of the machine) to the user's personal work site, it shall be provided free of charge by the supplier. The Supplier's airfare (round trip), food, accommodation, local transportation, translation, Internet, communication and visa costs at the Buyer's site shall be borne by the Customer in accordance with the actual documents.

Exhibition

FAQ
Q1. When was your factory established?
We have been specialized in the R&D, manufacturing and intelligent manufacturing solutions of laser processing equipment since 2005, mainly focusing on laser processing equipment such as fiber laser cutting, laser welding equipment, laser cladding equipment, etc.
Q2. What should I do if there is a problem with this machine during the warranty period?
The quality assurance period is 12 months from the date the goods arrive at the destination port. Except for man-made damage, we are responsible for providing accessories free of charge during the warranty period. After the quality assurance period, if you need to repair or replace parts, you must pay.
Q3. How to install and use?
We will provide training videos and English user manuals for installation, operation, maintenance and troubleshooting for the machine. When you encounter installation, use or adjustment problems, we will provide technical guidance by email, fax, telephone/Messenger/WhatsApp, etc.
Q4. What should I do if there is an after-sales problem?
You can directly describe your problem to the after-sales staff. China's strong after-sales service team. Our engineers (employees) can communicate and solve problems in English, and can be arranged once a day per person when you need it. If I need to go to your place to help, I will quickly arrange to go there and quickly fly to help you.
Q5. How about wholesale price?
If you are a wholesaler, distributor or agent, please contact us to get wholesale price.
