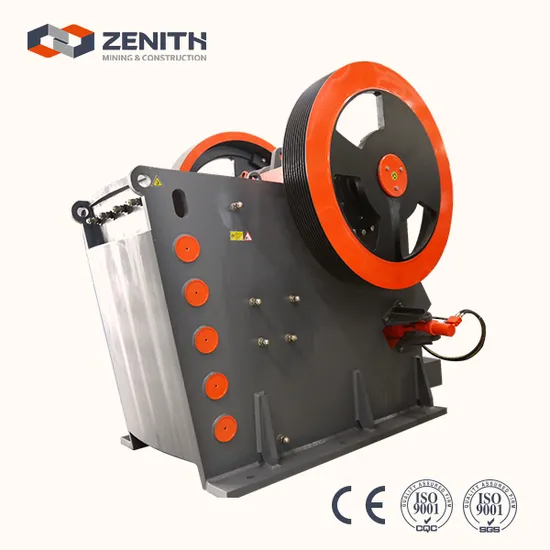

Small Rock Jaw Stone Crusher/Mining Machine for Sale
| US$5,999.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
PEW250x1200, PEW400x600, PEW760, PEW860
Crushing Style
Grinding & Impact
Compressive Strength (For Crushing)
>300MPA
Crushing Degree
Coarse Crusher
Finished Surface
Hole Process
Certification
CE, ISO, GOST
Condition
New
Color
Iron Grey
Spare Parts Supply
for Whole Year
Test&Installation
Engineer Assigned
After-Sale Service
for Whole Using Life
Export Markets
Global
Transport Package
Container, Nude Packs, in Bulk
Specification
ISO9001: 2000
Trademark
Zenith
Origin
China
HS Code
8474209000
Production Capacity
1000 Set/Year
Product Description
Small Rock Jaw Stone Crusher/Mining Machine for saleSmall Rock Jaw Stone Crusher introduction:
The Small Rock Jaw Stone Crusher is widely used crushing equipment. It has two types, single-toggle type and double-toggle type.
Generally, the Small Rock Jaw Stone Crusher is applicable for coarse/medium crushing ores and rocks with compression strength under 250Mpa. The three models of jaw crushers can also crush ores and rocks of different hardness. The PEW single-toggle jaw crusher used for fine crushing is applicable for ores and rocks with medium hardness and below, and the double-toggle jaw crusher can be used to crush ores and rocks with various hardness and high corrosion.
Small Rock Jaw Stone Crusher Fetures and Advantages
The Small Rock Jaw Stone Crusher has advantages of simple structure, reliable working, easy operation, convenient maintenance and low cost for equipment and production. Small Rock Jaw Stone Crusher is widely used in metallurgy, mining, building materials, chemical industry and cement for coarse and medium crushing operations.
Small Rock Jaw Stone Crusher Working principle
The Small Rock Jaw Stone Crusher is mainly composed of frame body, movable jaw part, toggle plates, locking devices with pull-rod spring and driving devices. The movable jaw is driven by motors for complex pendulum through triangle belt. Once the ores are poured into the crushing cavity crush, they will be extruded, split and bended due to the action of the swing jaw. The crushed ores will be discharged out at the moment when the swing jaw leaves the fixed jaw plate.
Small Rock Jaw Stone Crusher technical data:
| Model | Feed Inlet Size (mm) | Max Feed Size (mm) | Outlet Range (mm) | Capacity (t/h) | Motor Power (KW) | Weight (ton) | Overall Dimension(mm) |
| PEW760 | 760x1100 | 620 | 75-200 | 150-350 | 110-132 | 24 | 2600× 2500× 2200 |
| PEW860 | 860x1100 | 720 | 100-225 | 200-500 | 132-160 | 32 | 3300× 2320× 3120 |
| PEW1100 | 1100x1200 | 930 | 150-275 | 300-650 | 185-200 | 59.2 | 4140× 2660× 3560 |
| PEW400x600 | 400x600 | 350 | 35-85 | 15-70 | 37 | 6.8 | 1920× 1460× 1840 |
| PEW250x1200 | 250x1200 | 220 | 20-40 | 20-50 | 37 | 6 | 1400× 2050× 1310 |
| PEW250x1000 | 250x1000 | 220 | 20-40 | 15-50 | 30 | 5.6 | 1400× 1850× 1310 |
