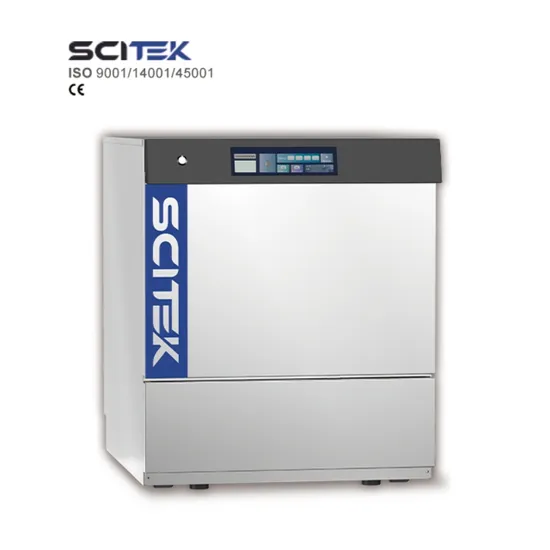

SCITEK Automatic Glassware Washer 0-400 L/min Laboratory Washer Injection Drying System

Product Description

Product Description
Instrument structure
1. The shell material is 304 stainless steel and the cleaning chamber is 316L stainless steel, the cleaning chamber were formed directly without welding points.
2. The integrated design of the whole machine can be installed independently without the aid of other external devices.
3. Four buckets of 5L cleaning agent can be stored inside and four universal casters at the bottom of the instrument for easy movement.
Data transmission system
1. 6 or more user ports to enter with three-level password authority management.
2. Fingerprint recognition authority management system and SD card storage audit trail system, the interface is RS232.
Water circulation system
1. Variable frequency soft-start function control the circulation pump from 0-600L/min.
2. Dynamic water injection system: Flowmeter was set in to measure water and the panel displays water intake and process in real time to ensure the ratio of cleaning agent and water.
3. Pipeline pressure monitor monitors the pressure of the main pipeline in real time.
4. Double temperature monitoring system and optional drainage cooling and double drainage function.
Safety protection system
1. Water heating over temperature protection, hot air heating over temperature protection, water pump over temperature protection, fan over temperature protection;
2. Monitoring water leakage, the instrument will stop working if water leakage;
3. The instrument will recovery automatically after water cut and memory if the power cut off;
4. The instrument have the remind function when the cleaning agent is lacking;
5. Multi-layer filtration system: prevent debris from entering the pipeline and causing blockage. Drying system
1. HEPA drying system with double pipeline compression fan, the maximum vacuum pressure is 110 mbar and the circulation of hot air is not less than 110 m³/h.
2. Temperature from room temperature to 120ºCand drying time from 0 to 300mins.
3. With double spray heat exchange system and water-saving condensing technology.Product Parameters

Model		WD-160	WD-190	WD-230	WD-230H	WD-320I	WD-320H	WD-680
Capacity(L)		158L	185L	223L	223L	317L	317L	680L
Display		8.8inch LCD Touch screen		7inch LCD Touch screen
Standard Program		30						10
Self-defined Program		120						10
Searchable Data Files		Cleaning program files; Cleaning record files; Monitor files
Storage		No	SD card(32G)					SD card and USB disk (32G)
Permission Management System		Three level						Four Level
Printer		No	Printer interface					Built in printer
Drying	Drying System	No	Double spray and heat exchange system with air inlet HEPA filter
	Drying Time Range	No	0 to 300mins
	Drying Temp Range	No	RT to 120ºC
	Drying Method	Chamber Forced Air Drying	Hot air injection via sprinkler (Circulation of hot air is not less than 110 m³/h)
Water Inlet pipe	Quantity	2
	Length	Standard: 2m (Customizable)
	Material	PVC
Water Pump	Brand	Sweden
	Flow Rate	0-400 L/min	0-500 L/min	0-600L/min		0-800 L/min	0-800 L/min	0-1600 L/min
	Consumption	0.37kW	0.75kW	0.75kW	0.75kW	1.5kW	1.5kW
Pipeline Pressure Monitoring		No	Yes
Structure Material	External	304 stainless steel
	Cleaning Chamber	316 stainless steel
	Door	Automatic multi-touch intelligent door.
		In standby mode, there is a gap between the front door and the cavity to facilitate water vapor evaporation. Automatically locks when cleaning starts.
	Caster	Four universal casters at the bottom of the instrument for easy movement
Cleaning Rack		1 layer	2 layer	2 layer	2 layer	3 layer	3 layer	6 layer
Air Heating Consumption		0.5kW	3kW	3kW	3kW	4kW	4kW	8kW
Power Supply		220/110, 50/60Hz			380/220V 50/60Hz	220/110V 50/60Hz	380/220V, 50/60Hz
Total Consumption		5kW	5kW	5kW	10kW	5kW	10kW	21kW
External Size(W×D×H)(mm)		640x726x778	670×691×940	670×760×1400	670×760×140	670×757×1650	670×757×1650	1560×790×1980
Shipping Size(W×D×H)(mm)		970x840x1350	990x860x1370	930x820x1620		890x880x1800		1680x910x2100
N.W./G.W. (kg)		135/150	135/160	200/230		240/270		630/750

	Time(min)	Temp(ºC)	Alkaline (ml)	Acid(ml)	Water source
Pre-wash	2	10	0	0	Tap water
Main Wash	15	70	50	0	Tap water
Neutralization	3	40	0	50	Tap water
Rinse 1	1	10	0	0	Tap water
Rinse 2	1	10	0	0	Purified water
Rinse 3	1	60	0	0	Purified water
Drying	5	100	0	0	/

WD-160: Small size, the laboratory glass washer can be placed under the bench or on the bench, it is an economical and practical lab washer. (Commonly used cleaning racks: 1 unit XC-03/ 1 unit PLYT-21, 1unit PLWT-32)
WD-190: Small size, large cleaning volume, the drying function can select (Commonly used cleaning racks: 1 unit SC-01 and 1 unit XC-03/ 2 units PLYT-21 and 2 units PLWT-32)
WD-230/WD-230H: High-throughput cleaning while occupying a smaller footprint (Commonly used cleaning racks: 1 unit SC-01 and 1 unit XC-03/ 2 units PLYT-21 and 2 units PLWT-32)
WD-320I/WD-320H: Large cleaning volume, the laboratory glassware washing machine can place 3 layers of cleaning basket (commonly used cleaning racks: 2 units SC-01 and 1 unit XC-03/ 3 units PLYT-21 and 3 units PLWT-32)
WD-680: Simen control system, it can place 6 layers of cleaning basket. (Commonly used cleaning racks: 4 units SC-01 and 2 units XC-03/ 6 units PLYT-21 and 6 units PLWT-32)
Kindly note: All Cleaning racks are optional accessories
