Rotary Tiller Cultivator 100-300cm Width Rotary Tiller Blade Making Machine
| US$520.00-820.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
1GQN Series
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Gasoline
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Vertical Shaft
Certification
EU
Color
Red
Warranty
One Year
Belonging
Agriculture Machine
Using
Landconsolidation
Power
25HP
Engine
Diesel Engine
Transport Package
Wooden Package
Specification
Customized
Trademark
Land River
Origin
China
HS Code
8432290000
Production Capacity
500sets/Year
Product Description

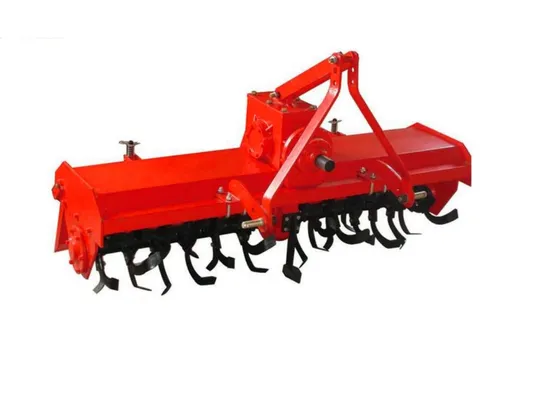

Product DescriptionOur main products include DISC HARROW,DISC PLOUGH,CULTIVATOR,SHARE PLOW.FARMTRAILER,GRASS MOWER,SEEDER,HARVESTER,DISS BLADE,BREAK SHOVEL AND OTHER AGROPARTS,ESPECIALLY IN HEAT TREATMENT OF THE BLADE.WE HAVE ACCUMULATED RICHEXPERIENCE,THE PRODUCTION OF BLADE WITH EXCELLENT TECHNOLOGY AND RELIABLEQUAL-ITY HAS WON THE CUSTOMER'S WIDELY RECOGNIZED. Rotary tiller is a machine which is matched with tractor to complete the tillage and harrowing operations. It has a strong ability to break soil, to meet the requirements of dry sowing or paddy planting, and can make full use of the power of tractors. It has the functions of breaking the plough bottom, restoring the soil topsoil structure, improving the ability of soil water storage and wall preservation, eliminating some weeds, reducing pests and diseases, leveling the surface and improving the standard of agricultural mechanization operation.
If there is any needs or questions, feel free to contact me via email or phone.
Detailed Photos
Product Parameters
| Model | 1GQN- 100 | 1GQN -120 | 1GQN -140 | 1GQN -150 | 1GQN -160 | 1GQN -180 | 1GQN -200 | 1GQN -220 | 1GQN- 250 | 1GQN- 300 | ||
| Matched power(hp) | 12-15 | 18-20 | 20-25 | 25-30 | 30-40 | 50-55 | 55-75 | 60-80 | 75-80 | 80-120 | ||
| Working width (cm) | 100 | 120 | 140 | 150 | 160 | 180 | 200 | 220 | 250 | 300 | ||
| Working depth(cm) | Dry land | 12-16 | 12-18 | |||||||||
| Paddy field | 14-16 | 14~20 | ||||||||||
| NO.of blades | 18 | 26 | 30 | 34 | 38 | 42 | 46 | 50 | 58 | 70 | ||
| Type of blade | IT195 | IT225 | IT245 | |||||||||
| Total weight (kg) | 160 | 175 | 200 | 220 | 230 | 400 | 430 | 445 | 460 | 520 | ||
| Dimension (mm | (L) | 900 | 900 | 900 | 900 | 900 | 1020 | 1020 | 1020 | 1020 | 1020 | |
| (W) | 1050 | 1350 | 1500 | 1600 | 1700 | 1900 | 2100 | 2300 | 2600 | 3100 | ||
| (H) | 950 | 1000 | 1000 | 1000 | 1000 | 1152 | 1152 | 1152 | 1152 | 1152 | ||
| Linkage | (Standard three-point mounted) | |||||||||||
Application
Packaging & Shipping
Company Profile
