China Supplier 2phase NEMA17 Closed Loop Stepper Motor with High Quality Driver Kit 0.3~0.65nm
| US$42.00-52.00 | 5 Sets (MOQ) |
Basic Info.
Model NO.
42EBP79ALC+HBS57AJ-X
Number of Stator
Two-Phase
Excitation Mode
HB-Hybrid
Number of Poles
2
Operate Mode
Three Phase Double Beat
Type
Magnetic-Electric
Phase
2
Current / Phase
2.5A
Dielectric Strength
AC 500V/ 1min / 5mA Max.
Number of Phase
2
Phase Inductance
3.5mh±20%(1kHz 1V RMS)
Step Angle
1.8°
Rated Current/Phase
2.5A Peak Value
Phase Resistance
2Ω±0.1(20ºC)
Weight
1kg
Holding Torque
0.65n.M
Transport Package
Polyfoam, . Cardboard Carton
Trademark
times brilliant
Origin
Beijing, China
Packaging & Delivery
Package Size
32.00cm * 25.00cm * 20.00cm
Package Gross Weight
5.000kg
Product Description

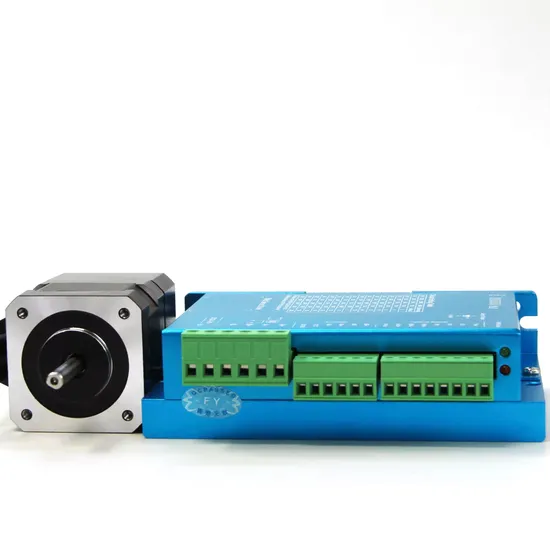

China factory 2phase Nema17 closed loop stepper motor with high quality driver kit
Note: the motor with magnetic ,so magnetic inspection fee will be incurred during transportation. Please contact shop assistant to supplement it.large quantities can dispense with it
Click to get your special discount
Click to get your special discount
Click to get your special discount
Click to get your special discount
Driver HBS57AJ: new 32-bit DSP digital nema23 closed-loop stepper motor driver, engraving machine, CNC equipment available. PWM current control, extremely low noise, high - speed torque than ordinary driver 40%. Voltage: dc16-70v (DC24V with 57 motors is recommended) subdivided: 256 subdivided
Click to get your special discount
